Phoenix Contact 2839279 Surge protection base-element PT 2XEX(I)-BE
Normally In Stock
Code: 10612

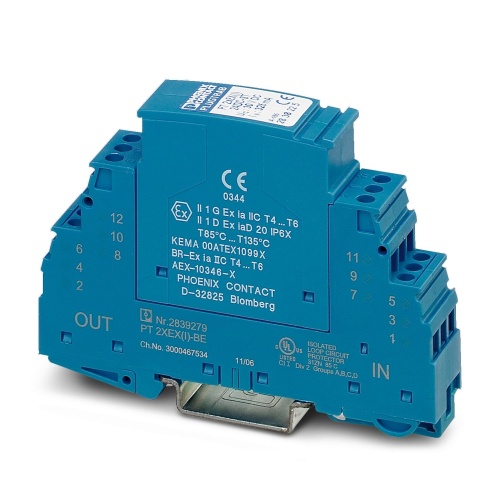

PT 2XEX(I)-BE Phoenix Contact Transient Surge Suppressor PT 2XEX(I)-BE Base element for protective plug PT with protective circuit for two 2-core floating EEx ia signal circuits. Mounting on NS 35/7.5 and NS 35/15.
Condition: New
Usually ships Same Day or Next Day$165.29
Sale Price
$137.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

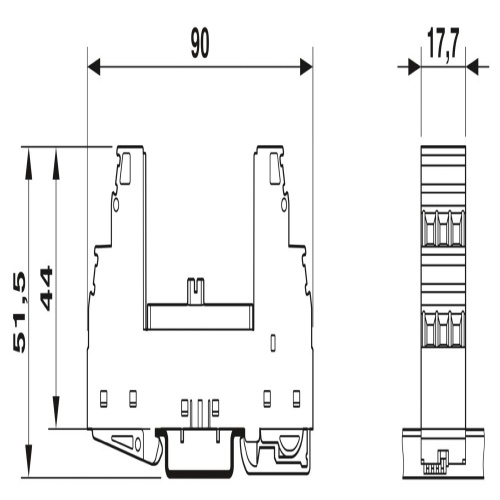

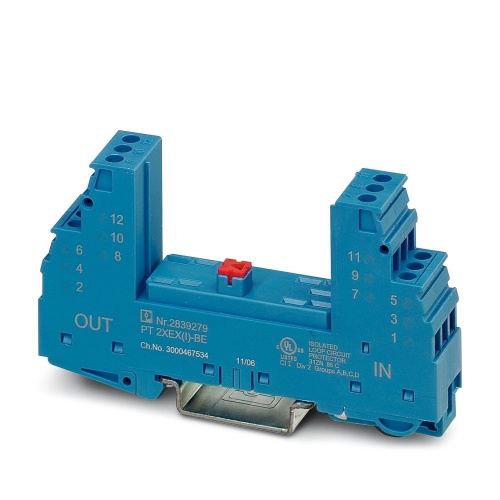

Phoenix Contact 2839279 The base element is designed for use in protective plugs with protective circuits, specifically for two 2-core floating EEx ia signal circuits. It is intended for mounting on the NS 35/7.5 and NS 35/15 standards, with a housing width of 17.5mm.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
30 Volt
Sub Component
Base Element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839279 CAD data International.dxfPhoenix 2839279 CAD data International.pdfPhoenix 2839279 CAD data International.stpPhoenix 2839279 CAD Drawing.zipPhoenix 2839279 Certification International.pdfPhoenix 2839279 Flyer English.pdfPhoenix 2839279 Manufacturers declaration English.pdfPhoenix 2839279 Manufacturers declaration International.pdfPhoenix 2839279 Package Slip International.pdfPhoenix 2839279 Software International.zipPhoenix 2839279 Spec Sheet.pdfPhoenix 2839279 Surge Protection English.pdfPhoenix 2839279 Tender Text English.zipPhoenix 2839279 User Manual.pdf
Code: 10612
Phoenix Contact 2839279 Surge protection base-element PT 2XEX(I)-BE
