Code: 10479

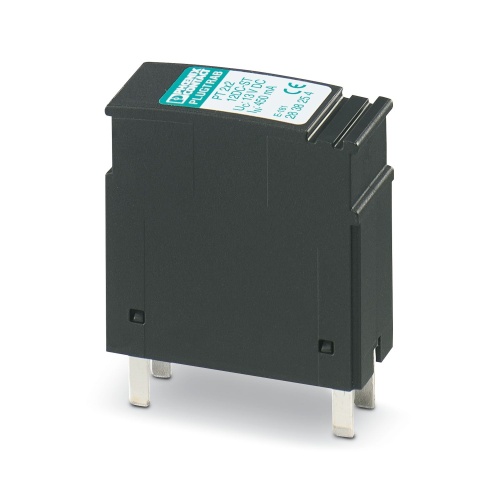

Phoenix Contact 2838254 Surge protection plug PT 2X2-12DC-ST
Normally In Stock

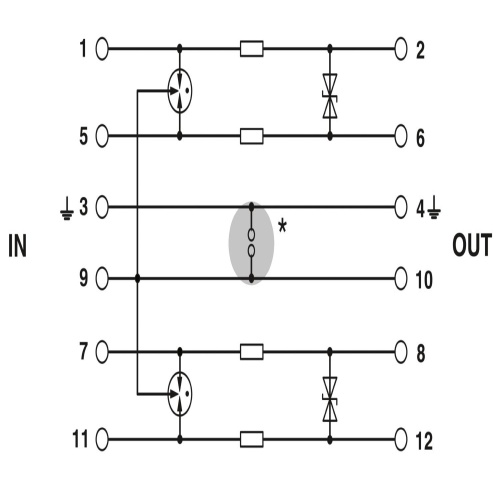

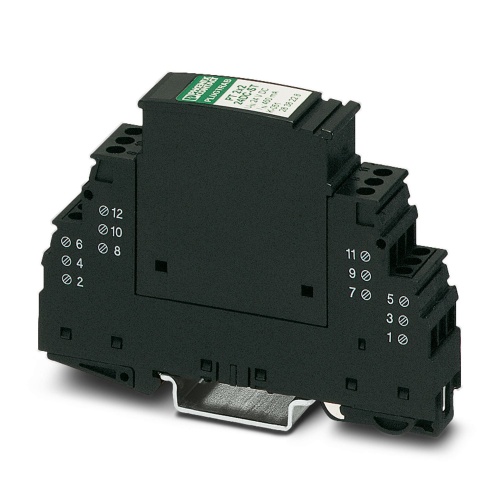

PT 2X2-12DC-ST Phoenix Contact Transient Surge Suppressor PT 2X2-12DC-ST Protective plug (Base sold Separately use Phoenix 2920024) PT with protective circuit for two 2-core floating signal circuits. Nominal voltage: 12 V DC
Condition: New
Usually ships Same Day or Next Day$428.89
Sale Price
$357.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838254 A protective connector designed to shield two separate 2-wire floating signal circuits from electrical shock, featuring a built-in protective circuit and compatible with HART technology, operating at a nominal voltage of 12V DC.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
40 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2838254 CAD data International.dxfPhoenix 2838254 CAD data International.pdfPhoenix 2838254 CAD data International.stpPhoenix 2838254 CAD Drawing.zipPhoenix 2838254 EPLAN Macro International.z13Phoenix 2838254 EPLAN Macro International.zipPhoenix 2838254 Flyer English.pdfPhoenix 2838254 Manufacturers declaration English.pdfPhoenix 2838254 Manufacturers declaration International.pdfPhoenix 2838254 Package Slip International.pdfPhoenix 2838254 Product Information English.pdfPhoenix 2838254 Software International.zipPhoenix 2838254 Spec Sheets.pdfPhoenix 2838254 Surge Protection English.pdfPhoenix 2838254 Tender Text English.zipPhoenix 2838254 User Manual.pdf
