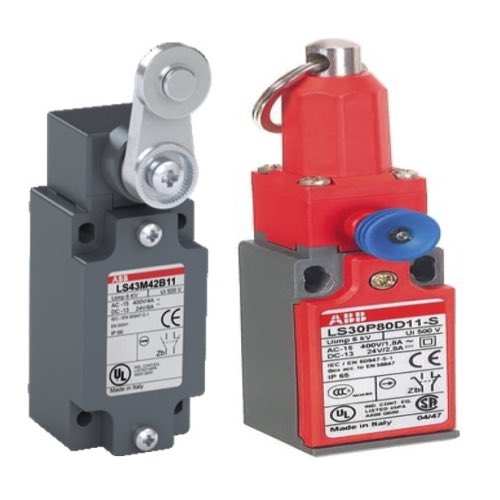

ABB Limit Switches
ABB limit switches deliver practical benefits with industrial-grade precision and robust construction. Housings and torquing surfaces are designed with IP ratings up to IP67, so the switches can withstand prolonged exposure to dust, dirt, liquids, and extreme temperatures. ABB’s housing, plunger, and internal mechanical design uses rigid structural steel, stainless steel, or heavy-duty thermoplastics ideally suited for machine tools, conveyors, packaging lines, presses, and load-handling equipment in demanding environments. T
hese switches hold their calibration, repeatability, and actuation points over time, preventing callbacks and unscheduled downtime. ABB limit switches utilize robust, accurate movement-based actuation technologies — such as lever rollers, push plungers, and adjustable rods — to deliver repeatable position-detection signals at defined points. Their contact systems are gold- or silver-plated, produce rapid switching, and tolerate millions of cycles, even at low speeds. This helps applications ranging from process automation and lifts to robotics and material handling maintain reliable position and end-stop sensing in real time.
More Information about ABB Limit Switches
ABB engineering ensures each switch provides predictable operation when activating relays, PLC inputs/outputs, motor starters, or safety interlocks. ABB also offers safety-rated and specialized limit switches for staff protection and challenging operating areas. Models certified to IP66/IP67 or using chemical- and corrosion-resistant housings are designed for outdoor conveyors, hazardous locations, washdown stations, and limit detection in machine guarding applications. For food processing, mining, power-generation, and chemical-processing installations, these higher-protection units help ensure regulatory compliance and operational safety. Enhanced switches with double-seal technology and IP69K rankings are available for splashes, mud, and frequent cleaning, maintaining switch function when other sensors can’t.
FAQs
What are ABB limit switches used for?
ABB limit switches are mechanical or electromechanical devices used to detect the presence, position, or passage of moving parts in industrial machinery, triggering a signal when a part reaches a set position. They help with safety interlocks, machine automation sequencing, end-of-travel detection, door & guard monitoring, and other position-sensitive tasks across manufacturing, conveyors, packaging, and automation systems.
What types of actuators and configurations do ABB limit switches come in?
ABB offers limit switches with a variety of actuator styles — including lever arms, roller levers, plunger/push-button, and adjustable roller rods — allowing them to be matched to different mechanical motions. Housing options often provide robust protection (e.g., for dusty, wet or harsh industrial environments), making them suitable for heavy-duty operation even in challenging conditions.
How reliable and durable are ABB limit switches for industrial use?
ABB designs limit switches for high durability and longevity under repeated mechanical stress. The rugged housings and quality internal components make them resistant to wear, vibration, dust, and moisture, which is critical in industrial environments where switches may cycle many times per day. Their reliability helps ensure consistent position detection and safety trigger performance over long service lives.
Can ABB limit switches be used in automation and safety-critical applications?
Yes, ABB limit switches are often deployed in automation systems for precise position feedback, and in safety-critical roles such as guarding doors, emergency stop mechanisms, and equipment limit detection. Their mechanical design offers a clear, physical action trigger, which can be preferred in situations where electrical-only sensors might fail or be less safe.
How do I choose the right ABB limit switch for my application?
Selecting the right ABB limit switch depends on several factors: the type of motion or part you need to monitor (sliding, rotating, linear travel), the required actuator (lever, roller, plunger), the environmental conditions (dust, moisture, vibration), the number of cycles expected, and whether the application involves safety-critical operations. Matching these requirements with ABB’s specification sheet ensures optimal performance and long service life.
Limit Switch Basics
What are limit switches?
Limit switches are electromechanical switches that operate based on the movement or presence of an object. They are designed to detect the presence of an object using an actuator connected to a series of contacts to detect the presence and proximity or absence of a material or object. When the switch's actuator is moved by an object it will change the state of an electronic contact set. This movement signals that some preset limit has been reached. There are many different ways a switch can be actuated depending on the type of switch that is being used. Some use a roller and lever, some use a button or plunger, while others might use a rotating arm and rod attached to the main body of a switch. The type of switch that is used will largely be dictated by the specific application.
Where are limit switches used?
Limit switches can be used to tally or count items, so that when a limit is reached, the switch will open or close. This open and closing action can be counted by a controller allowing the action to be totalized. Limit switches can be used as safety interlocks to prevent machine parts from moving any further when specific point is reached. Limit switches are also commonly used in larger control systems. For example, when a certain limit is reached, the actuator can deactivate or activate a device to prevent it from malfunctioning.
