Code: 99542

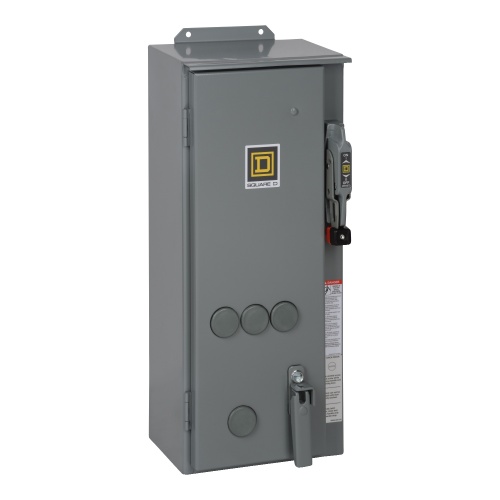

Schneider Electric 8538SCA14V02S NEMA Non-Reversing Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, 10 HP at 600 VAC polyPhase, 120 VAC coil, NEMA 12
Normally In Stock
Buy Schneider 8538SCA14V02S Separate control circuit NEMA 12 painted sheet steel without external reset Without 3P 1 110 V AC 50 Hz, 120 V AC 60 Hz No indicator Non-reversing Fusible disconnect switch H, 30 A Melting alloy 3 No control units Combination Starters & Pump Panels NEM
Condition: New
CALL FOR LEAD TIME$2059.62
Sale Price
$1716.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 24 V AC 50/60 Hz coil
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
1
Starter Enclosure Type
NEMA 12
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter Coil Voltage
110 VAC
Component
NEMA Starter
Sub Component
Combination Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Actions
Fusible Disconnect Switch
Starter Actions
Melting Alloy
Starter Indicator Light
No Indicator
Features
Combines the requirements of motor overload and short-circuit protection into one package
Offers flexible compatibility with four overload relay types tailored for diverse motor protection needs
Accelerates setup and servicing with door-mounted pilot devices for easy access and quick modifications
Highly customizable with hundreds of configuration options to suit any application
This product is TAA compliant.
