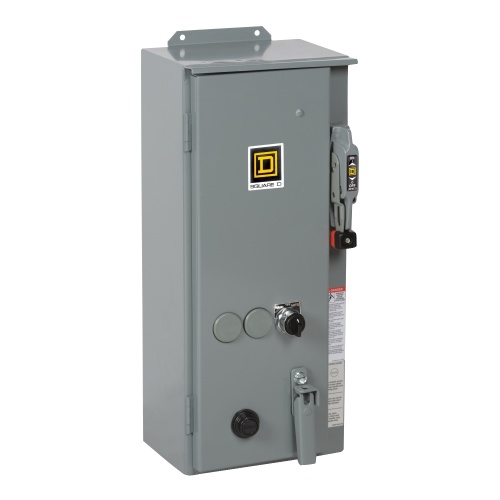

Schneider Electric 8538SBA23V81CF4T NEMA Non-Reversing Combination Starter, Type S, 30A fusible disconnect, Size 0, 18A, 5 HP at 600 VAC polyPhase, 120 VAC coil, NEMA 12
Normally In Stock
Code: 99142
Buy Schneider 8538SBA23V81CF4T Control circuit transformer NEMA 12 painted sheet steel with external reset Without 3P 0 120 V AC 60 Hz secondary circuit, 480 V AC 60 Hz primary circuit No indicator Non-reversing Fusible disconnect switch H, 30 A Melting alloy 3 2 fuses primary ci
Condition: New
CALL FOR LEAD TIME$2776.15
Sale Price
$2313.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rev. Contactor TeSys NEMA Sz0 3P 24VDC
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Coil Voltage
480 VAC
Starter Enclosure Type
NEMA 12
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Component
NEMA Starter
Sub Component
Combination Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Actions
Fusible Disconnect Switch
Starter Actions
Melting Alloy
Starter Indicator Light
No Indicator
Features
Type S nonreversing fusible combination starters are for motor control applications
Combination starters combine the requirements for motor overload and short circuit protection into one package
NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase
Combination starter has 30 ampere Class H fuse clips
This 3 pole starter is for three phase applications
Combination starters are available with a wide variety of replaceable coil voltages
Starter has a 110/120 VAC 50/60 Hz operating coil wired for common control
This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions
A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter
Enclosure is 24.00 inches tall, 9.50 inches wide and 8.34 inches deep
A wide variety of accessories are available for Type S starters
This combination starter is supplied with fused transformer
Transformer has a 480 VAC primary and a 120 VAC secondary
This starter is also supplied with a HOA selector switch
Type S combination starters are UL listed and CSA certified.
