Code: 98359

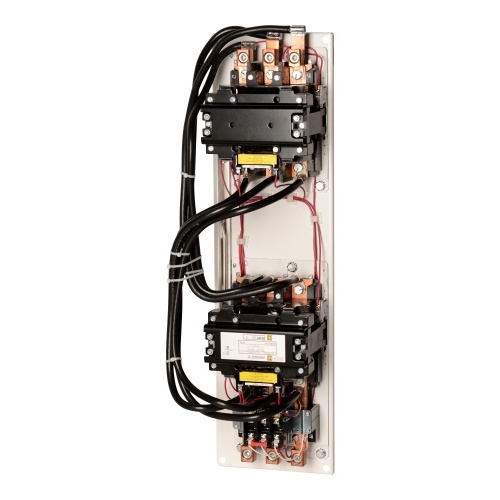

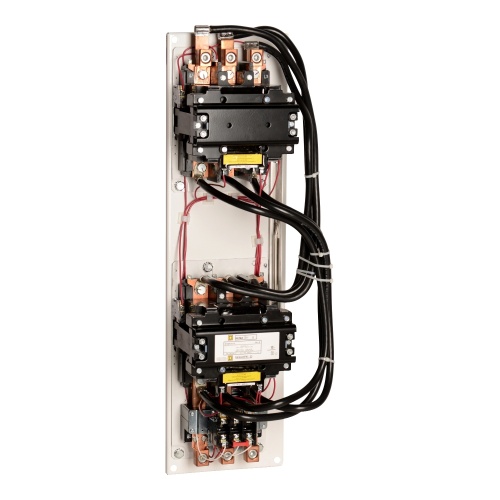

Schneider Electric 8736SGO1V02S NEMA Motor Starter, Type S, reversing, Size 5, 270A, 3 pole, vertical, 120 VAC coil, melting alloy overload, open style
Normally In Stock
Buy Schneider 8736SGO1V02S 5 270 A Melting alloy 3 3P Not rated (open device 110 V AC 50 Hz, 120 V AC 60 Hz Separate control circuit No control units 75 HP 200 V AC, 100 HP 230 V AC, 200 HP 460 V AC, 200 HP 575 V AC 3 Phase Vertical UL Listed, NEMA, CSA NEMA Starters NEMA Type S
Condition: New
CALL FOR LEAD TIME$23097.49
Sale Price
$19247.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Contactor, Definite Purpose, 25A, 1 pole, 110/120 VAC 50/60 Hz coil, open
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
5
Starter Coil Voltage
110 VAC
Starter HP
75 HP @ 200 VAC
Starter HP
100 HP @ 230 VAC
Starter HP
200 HP @ 460 VAC
Starter HP
200 HP @ 575 VAC
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Reversing Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
270 Amp
Features
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors
NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes
NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay
Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements
This reversing starter is arranged vertically
This 3 pole NEMA Size 5 reversing starter has an 270 ampere rating
This three phase NEMA Size 5 reversing starter has 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings
This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
This NEMA reversing starter is an open device without an enclosure
This starter is 39.16 inches tall, 10.75 inches wide and 9.38 inches deep
A wide variety of accessories are available for Type S starters
Type S reversing NEMA motor starters are UL listed and CSA certified.
