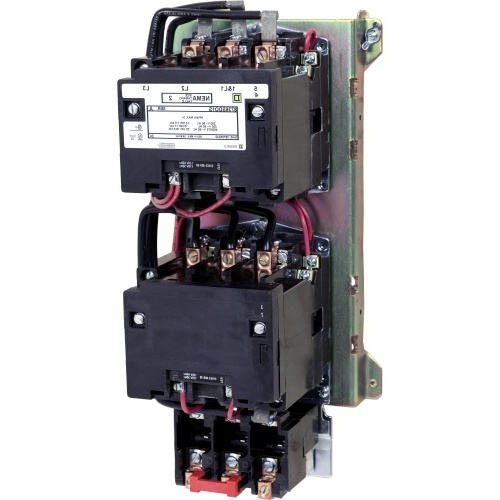

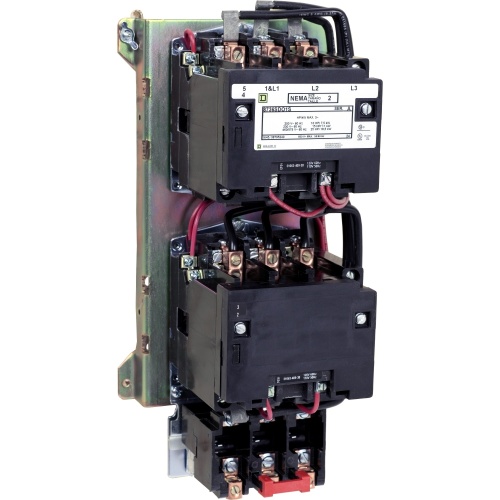

Schneider Electric 8736SDO1V02S NEMA Motor Starter, Type S, reversing, Size 2, 45A, 3 pole, vertical, 120 VAC coil, melting alloy overload, open style
Normally In Stock
Code: 98281
Buy Schneider 8736SDO1V02S 2 45 A Melting alloy 3 3P Not rated (open device 110 V AC 50 Hz, 120 V AC 60 Hz Separate control circuit No control units 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC 3 Phase Vertical UL Listed, NEMA, CSA NEMA Starters NEMA Type S Moto
Condition: New
CALL FOR LEAD TIME$2258.65
Sale Price
$1882.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 330 A - coil 110 V DC
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
2
Starter Coil Voltage
110 VAC
Starter HP
10 HP @ 200 VAC
Starter HP
15 HP @ 230 VAC
Starter HP
25 HP @ 460 VAC
Starter HP
25 HP @ 575 VAC
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Reversing Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
45 Amp
Features
Flexible with four overload relays types
Customizable with hundreds of combinations
Streamline installation, wiring, maintenance and field modifications
