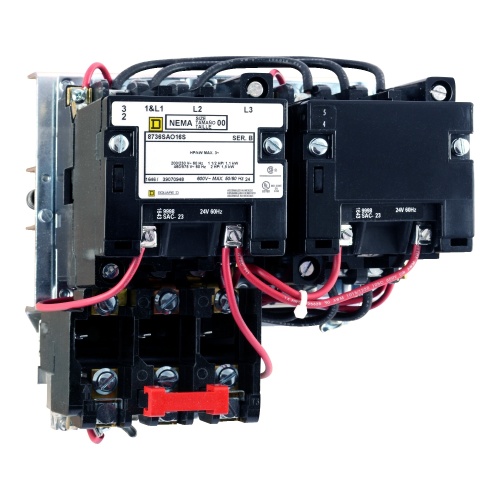

Schneider Electric 8736SCO8V08 NEMA Motor Starter, Type S, reversing, Size 1, 27A, 3 pole, horizontal, 208 VAC coil, melting alloy overload, open style
Normally In Stock
Code: 98254
Buy Schneider 8736SCO8V08 1 27 A Melting alloy 3 3P Not rated (open device 208 V AC 60 Hz Common control circuit No control units 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC 3 Phase Horizontal UL Listed, NEMA, CSA NEMA Starters NEMA Type S Motor Starters (853
Condition: New
CALL FOR LEAD TIME$1288.73
Sale Price
$1073.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 275 A - coil 110 V AC
Specifications
Starter Enclosure Type
Open
Starter NEMA Size
1
Starter Coil Voltage
208 VAC
Starter HP
7.5 HP @ 200 VAC
Starter HP
7.5 HP @ 230 VAC
Starter HP
10 HP @ 460 VAC
Starter HP
10 HP @ 575 VAC
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Reversing Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Features
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors
NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes
NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay
Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements
This reversing starter is arranged horizontally
This 3 pole NEMA Size 1 reversing starter has an 27 ampere rating
This three phase NEMA Size 1 reversing starter has 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings
This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 208 VAC 60 Hz operating coil wired for common control
A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter
This starter is 6.91 inches tall, 7.13 inches wide and 5.31 inches deep
A wide variety of accessories are available for Type S starters
Type S reversing NEMA motor starters are UL listed and CSA certified.
