Code: 982

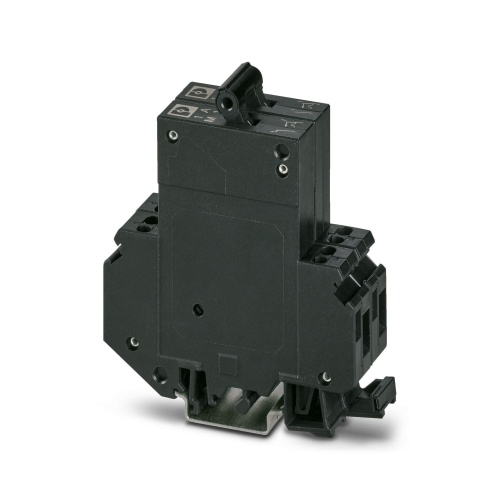

Phoenix Contact 0914976 Thermal-magnetic device circuit breaker TMC 2 M1 120 1,0A
Normally In Stock
Phoenix Contact 0914976 Breaker TMC 2 M1 120 2 Pole 1A
Condition: New
Usually ships Same Day or Next Day$224.58
Sale Price
$187.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0914976 A thermal-magnetic circuit breaker with a two-position switch features a normal blow mechanism, incorporating one normally open (N/O) contact and one normally closed (N/C) contact, designed to be mounted using a universal foot, accommodating both the NS 32 and NS 35 models.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Auxilary Contacts
Double Throw NO Or NC
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
1 Amp
Breaker Switching Type
Thermomagnetic
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Number of Poles
Two Pole
Breaker Trip Speed
Medium Trip
Breaker Unit
Complete Unit
Breaker Contact Type
N-O
Breaker Contact Type
N-C
Breaker Function
N-O Contact
Breaker Function
N-C Contact
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Maximum overcurrent protection over long cable paths, thanks to SFB tripping characteristic
Integration in remote signaling concepts, thanks to integrated changeover contact
Reduced installation costs, due to bridgeable device circuit breakers (in the base element)
Protection of 230/240 V AC control voltages, thanks to the M1 characteristic curve
Thermal-magnetic device circuit breakers are a part of the COMPLETE line system
Downloads
Phoenix 0914976 CAD data International.dxfPhoenix 0914976 CAD data International.pdfPhoenix 0914976 CAD data International.stpPhoenix 0914976 CAD Drawing.dxfPhoenix 0914976 Flyer English.pdfPhoenix 0914976 Manufacturers declaration English.pdfPhoenix 0914976 Manufacturers declaration International.pdfPhoenix 0914976 Spec Sheet.pdfPhoenix 0914976 Tender Text English.zipPhoenix 0914976 User Manual.pdfPhoenix 0914976 Various English.pdf
