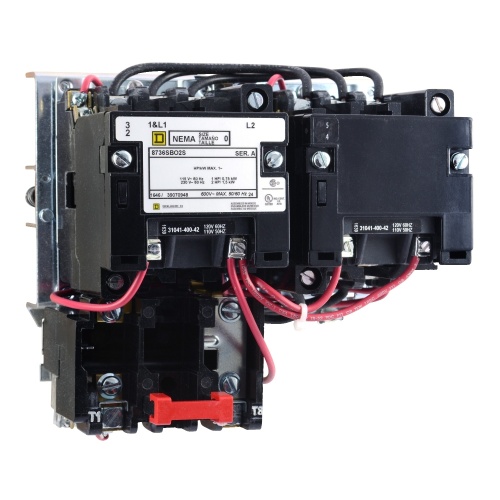

Schneider Electric 8736SBO2V02S Reversing Starter Size 0, 3-Pole, Melting Alloy Overload +Options
Normally In Stock
Code: 98133
Buy Schneider 8736SBO2V02S 0 18 A Melting alloy 1 3P Not rated (open device 110 V AC 50 Hz, 120 V AC 60 Hz Separate control circuit Repulsion induction No control units 4 wires 1 HP 115 V AC, 2 HP 230 V AC 1 Phase Horizontal UL Listed, CSA, NEMA NEMA Starters NEMA Type S Motor St
Condition: New
CALL FOR LEAD TIME$1146.96
Sale Price
$955.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 115 V AC 50/60 Hz coil
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter Coil Voltage
110 VAC
Starter HP
1 HP @ 115 VAC
Starter HP
2 HP @ 230 VAC
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Reversing Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
18 Amp
Features
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors
NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes
NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay
Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements
This reversing starter is arranged horizontally
This 3 pole NEMA Size 0 reversing starter has an 18 ampere rating
This single phase NEMA Size 0 reversing starter for a 4-wire repulsion induction motor has 1 HP at 115 VAC and 2 HP at 230 VAC ratings
This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
This NEMA reversing starter is an open device without an enclosure
This starter is 6.91 inches tall, 7.13 inches wide and 5.31 inches deep
A wide variety of accessories are available for Type S starters
Type S reversing NEMA motor starters are UL listed and CSA certified.
