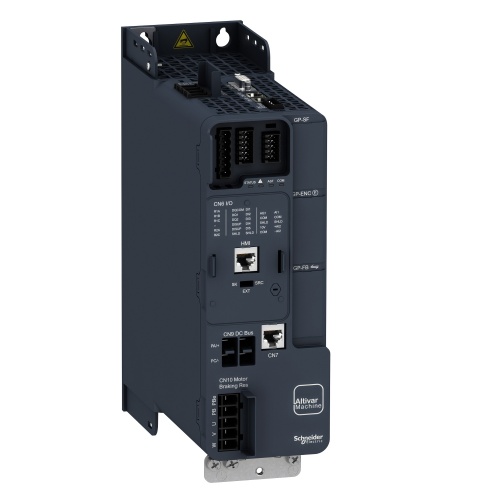

Schneider Electric ATV340U30N4 Altivar VFD- 3kW- 400V - 3 phases - ATV340
Normally In Stock
Code: 97636
Schneider ATV340U30N4 Integrated 65.62 ft (20 m EN/IEC 61800-3 category C3 3 phase 4 kW normal duty, 3 kW heavy duty 3 HP heavy duty, 5 HP normal duty 380-480 V - 15-10 % Variable speed drive 10.7 A 380 V without line choke heavy duty, 8.5 A 480 V without line choke heavy duty, 8 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$1252.99
Sale Price
$1044.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
variable speed drive - 3kW- 400V - 3 phases - ATV340
Specifications
VFD Horsepower Output
3 HP
VFD EMC Filter
Integrated
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
VFD Amperage Output
10.7 Amp
Manufacturer
Schneider Electric
VFD NEMA-IP Rating
IP20
VFD Input Voltage
400 Volt Three Phase
VFD Output Voltage
400 Volt Three Phase
VFD Line
Altivar ATV340
Features
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control
Altivar Machine ATV340 drives are sized heavy duty as standard
It works at a rated power up to 3kW /3hp and a rated voltage from 380V to 480V AC
ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed
This product integrates Modbus serial line communication protocols as standard

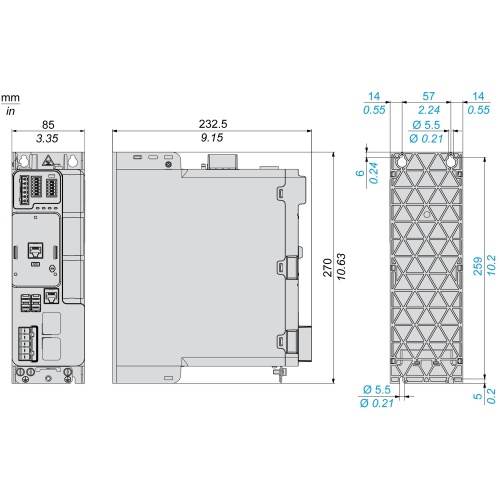

it weighs 2.1kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep
ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting
It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1
It is also CE, UL, CSA, and TÜV certified
Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating
It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes
It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM
It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
