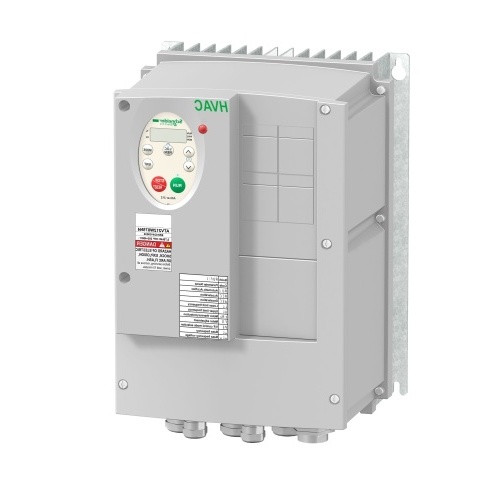

Schneider Electric ATV212W075N4 Altivar VFDATV212 - 0.75kW - 1HP - 480V - 3ph - EMC class C2 - IP55
Normally In Stock
Code: 97509
Schneider ATV212W075N4 0.75 kW 1 HP 380-480 V - 15-10 % Class C2 EMC filter integrated Variable speed drive Altivar 212 Variable Frequency Drive VFD HVAC solutions Drives IP 55 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
CALL FOR LEAD TIME$754.22
Sale Price
$628.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
variable speed drive ATV212 - 0.75kW - 1HP - 480V - 3ph - EMC class C2 - IP55
Specifications
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
1 HP
Drive Type
Basic
VFD EMC Filter
Class C2 EMC Filter Integrated
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV212
Features
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors
Its protection index is IP55 and it has a built-in EMC filter
It works at a rated power up to 0.75kW / 1hp and a rated voltage from 380V to 480V AC
Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system
Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics
It weighs 7kg and its dimensions are, 215mm wide, 297mm high, 192mm deep
It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping
It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions)
It is also CE, UL, CSA, C-Tick and NOM certified
The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals
It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes
The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
