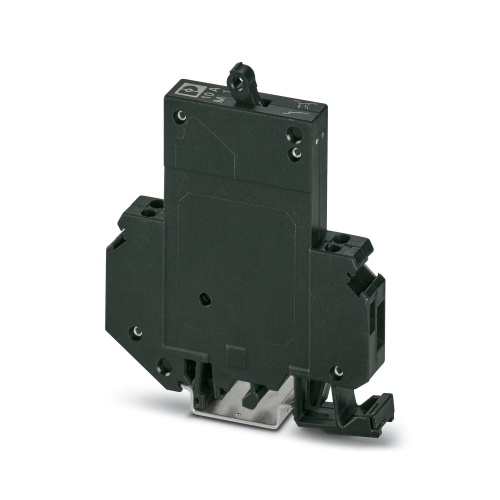

Phoenix Contact 0914701 Thermal-magnetic device circuit breaker TMC 1 M1 200 10,0A
Normally In Stock
Code: 973
Phoenix Contact 0914701 Breaker TMC 1 M1 200 1 Pole 10A
Condition: New
Usually ships Same Day or Next Day$94.26
Sale Price
$78.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0914701 A thermal-magnetic circuit breaker designed for single pole use features a normal blowing operation and comes equipped with a universal contact that accommodates both NS 32 and NS 35 mounting configurations.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
10 Amp
Breaker Switching Type
Thermomagnetic
Breaker Auxilary Contacts
Single Throw NC
Breaker Number of Poles
Single Pole
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating

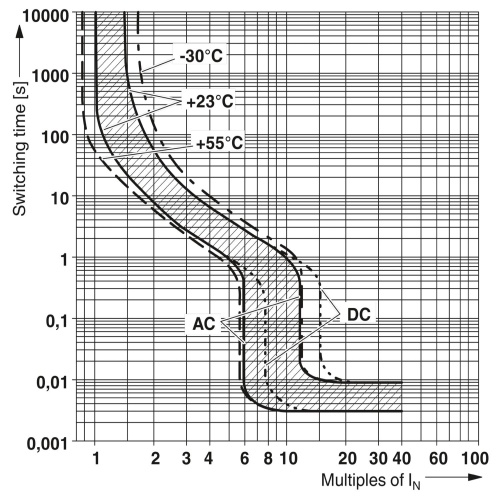

C Curve 7-10 X Amp Rating
Breaker Trip Speed
Medium Trip
Breaker Unit
Complete Unit
Breaker Voltage Rating
250 VAC
Breaker Voltage Rating
65 VDC
Breaker Contact Type
N-C
Breaker Function
N-C Contact
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Maximum overcurrent protection over long cable paths, thanks to SFB tripping characteristic
Integration in remote signaling concepts, thanks to integrated changeover contact
Reduced installation costs, due to bridgeable device circuit breakers (in the base element)
Protection of 230/240 V AC control voltages, thanks to the M1 characteristic curve
Thermal-magnetic device circuit breakers are a part of the COMPLETE line system
