Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

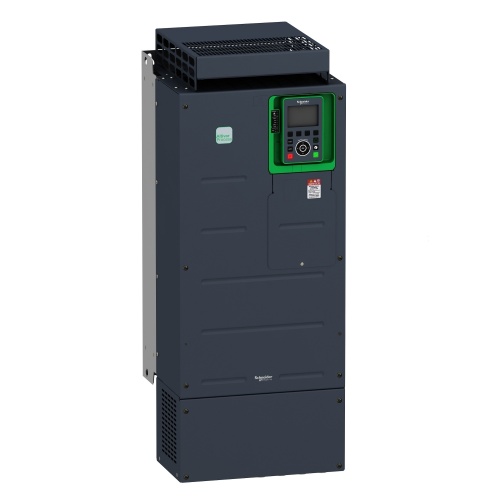

Schneider Electric ATV630D45S6 variable speed drive, ATV630, 60 HP, 600V, IP20
Normally In Stock
Code: 97286
Schneider ATV630D45S6 IP20IEC 61800-5-1, IP20IEC 60529 62 A 2.5 kHz normal duty, 52 A 2.5 kHz heavy duty Standard version Variable speed drive Ethernet, Modbus serial, Modbus TCP 60 HP 600 V normal duty, 50 HP 600 V heavy duty 55.1 A 600 V normal duty, 47.1 A 600 V heavy duty Wit *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$10872.22
Sale Price
$9060.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV630, 60 HP, 600V, IP20
Specifications
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
60 HP
VFD Amperage Output
62 Amp
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Ethernet
Option Card Slots
Modbus TCP
Manufacturer
Schneider Electric
VFD Input Voltage
600 Volt Three Phase
VFD Output Voltage
600 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV630
VFD EMC Filter
Without
Features
Pump efficiency tracking
Multi master-slave pump management
Pump and pipe protection
Fan management
>95% accurate energy consumption measurement
STO: Safe Torque Off
Embedded: Ethernet, Modbus
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink, BACnet MS/TP
Power range: 0.75 kW to 2600 kW
Voltage range: 200 – 400 – 690 V Three-phase
Motor type: Induction, PM, Reluctance, IE2-IE3-IE4 motors
Motor control type: Open-loop
THDI: THDi < 48%(Embedded), THDi<10% or THDi<5% with Passive filter or multi-pulse supply, THDi<= 3% with Low Harmonic module
