Code: 97223

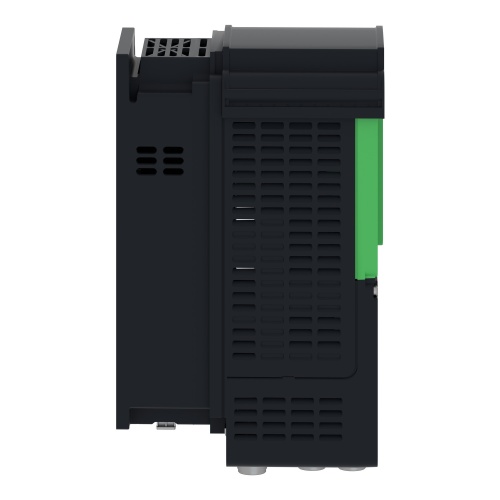

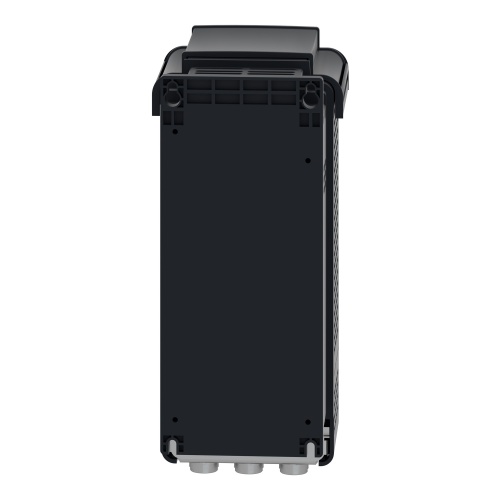

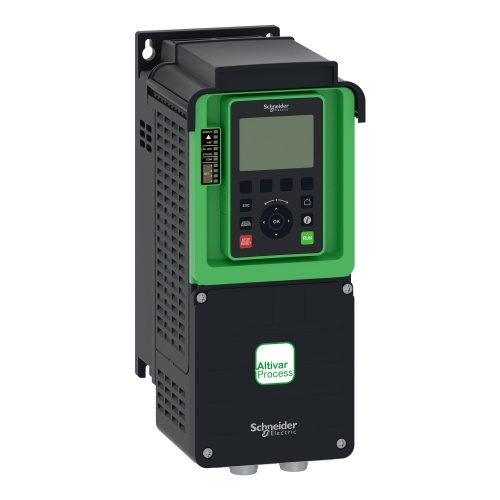

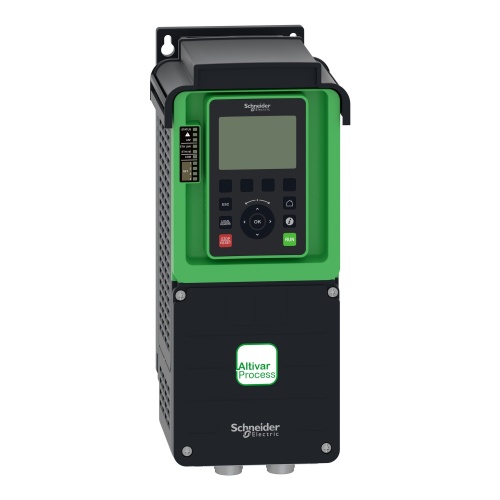

Schneider Electric ATV630U40N4 Altivar VFDATV630, 4kW/5HP, 380...480V, IP21/UL type 1
Normally In Stock
Schneider ATV630U40N4 IP21IEC 61800-5-1, IP21IEC 60529 4 kW normal duty, 3 kW heavy duty 9.3 A 4 kHz normal duty, 7.2 A 4 kHz heavy duty Standard version Variable speed drive Ethernet, Modbus serial, Modbus TCP 5 HP normal duty, 4 HP heavy duty 7.6 A 380 V normal duty, 6.7 A 480 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$2880.04
Sale Price
$2400.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
variable speed drive ATV630, 4kW/5HP, 380...480V, IP21/UL type 1
Specifications
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
5 HP
VFD Amperage Output
9.3 Amp
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Ethernet
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 492.13 Ft (150 M EN/IEC 61800-3 Category C3
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C2
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV630
Features
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
