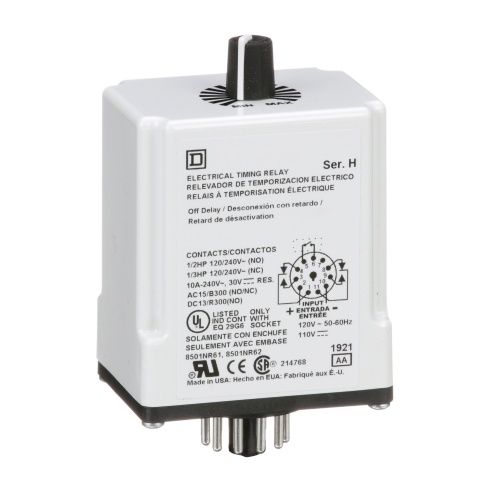

9050JCK plug in timers are designed to provide low cost timing in a plug in housing

This timer has an off delay timing mode

Input voltage to the timer must be applied continuously

When the customer supplied trigger switch closes, the timer relay contacts change state instantaneously

When the trigger switch opens, the time delay begins

When the delay is complete, the timer relay contacts return to their shelf state

If the trigger switch closes before the time delay is complete, then timing is reset

When the trigger switch opens, the delay begins again, and the timer relay contacts remain in their energized state

The timing range of 0.3 to 30 seconds is easily adjustable with a knob on the top of the timer

This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket

These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel

All wiring is made to the relay socket

The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC

This plug in timer is powered up with 120 VAC / 110 VDC

9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
