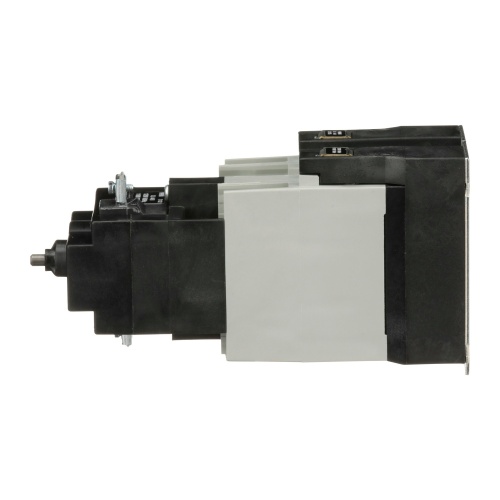

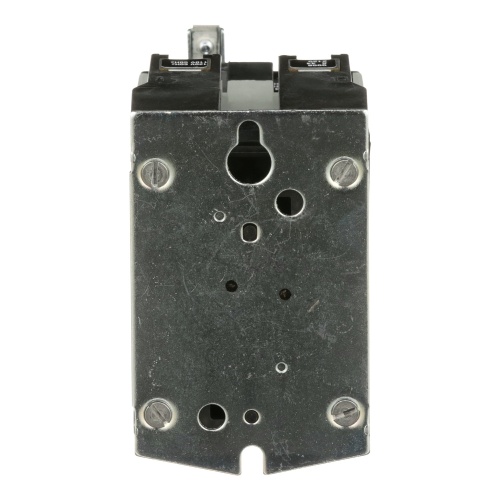

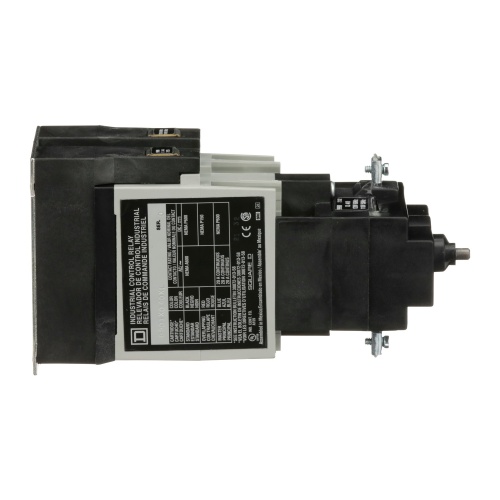

Schneider Electric 8501XO40XLV02 NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Normally In Stock
Code: 95957
Schneider 8501XO40XLV02 110 V AC 50 Hz, 120 V AC 60 Hz 4 NO 4 standard contact cartridges Industrial Relays Square D NEMA Relay 8501X Industrial Latching Relays
Condition: New
CALL FOR LEAD TIME$457.51
Sale Price
$381.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Specifications
Component
Relay Module-Electromagnetic
Manufacturer
Schneider Electric
Relay Throws
Single Throw 4 Normally Open
Coil Voltage Rating
110-127 Volt
Features
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity
They are ideal for applications where long life, high reliability and ease of maintenance are important
This relay has contacts with a 10 ampere resistive current rating at 600 VAC
The contacts also have an A600 inductive contact rating

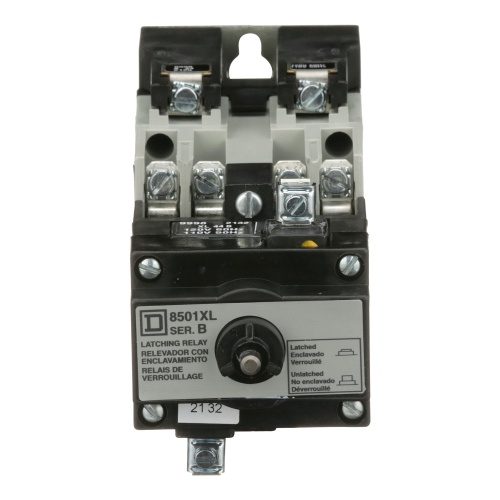

This relay has a mechanical latch attachment which holds all contacts switched even after removal of power from the replaceable latching coil
This relay provides sequence memory in the event of power loss
This relay is ideal for press control, process control and punch press applications
This relay is supplied with four 8501XC1 contact cartridges
The contact cartridges are installed as normally open contacts
The machine tool relays have straight through wiring
This makes wiring easier
The four plug in contact cartridges in this relay make contact conversion or replacement very easy
Contact conversion or replacement can be done without removing any wiring
Contacts are supplied with pressure wire connectors so wires can be easily terminated
18 to 12 AWG copper wire can be used with this relay
Relay has a 110/120 VAC 50/60 VAC replaceable latching coil
Relay has a continuously rated 110/120 VAC 50/60 VAC replaceable unlatching coil, which means no coil clearing contacts are required
Relay is UL listed and CSA certified.
