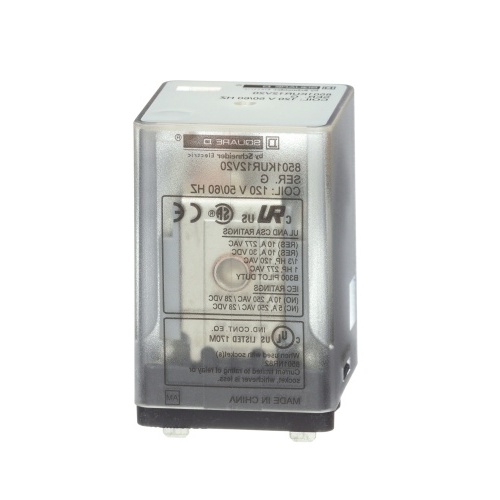

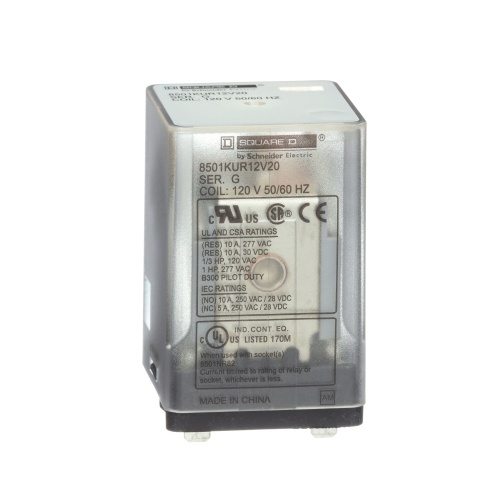

Schneider Electric 8501KUR12V20 Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil
Normally In Stock
Code: 95933
Schneider 8501KUR12V20 DPDT 120 V AC 1 hp 277 V AC, 0.33 hp 120 V AC 300 V AC, 30 V DC 20 ms - pick-up, 20 ms - drop-out No indicator 8501NR82 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit U
Condition: New
Normally Stocked$40.31
Sale Price
$33.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil
Specifications
Relay Throws
Double Throw
Relay Indication
No Indicator
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Relay Load Voltage AC Rating
120 Volt
Coil Voltage Max
300 Volt
Coil Voltage Max
30 Volt
Coil Voltage Rating
110-127 Volt
Features
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower
These relays are designed to be plugged into a relay socket
This makes for very easy replacement
This relay plugs into an 851NR82 relay socket
This relay has a DPDT contact arrangements
It has two normally open and two normally closed contacts
The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating
Relays can be ordered with a wide variety of coil voltages
This relay has a 120 VAC nonreplaceable coil
A green LED indicator is not supplied on this relay
8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
