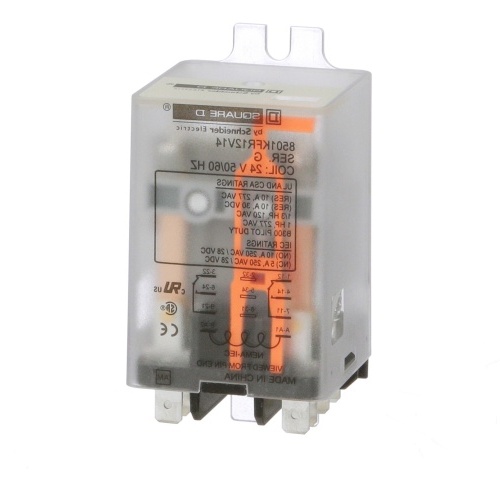

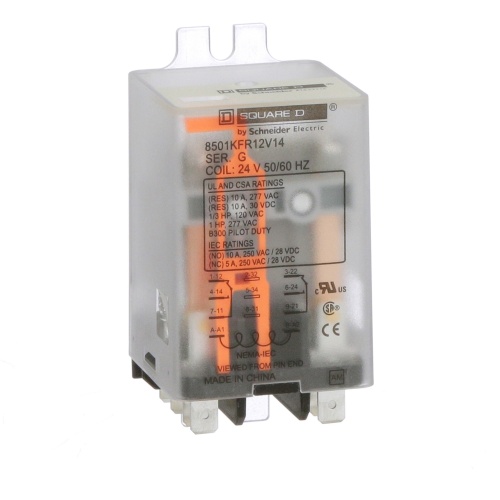

Schneider Electric 8501KFR12V14 Plug in relay, Type KF, flange mounted, 1 HP at 277 VAC, 10A resistive at 277 VAC, DPDT, 2 NO, 2 NC, 24 VAC coil
Normally In Stock
Code: 95889
Schneider 8501KFR12V14 DPDT 24 V AC 1 hp 277 V AC, 0.33 hp 120 V AC 300 V AC, 30 V DC 20 ms - pick-up, 20 ms - drop-out No indicator 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 508, 10
Condition: New
Normally Stocked$43.48
Sale Price
$36.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Plug in relay, Type KF, flange mounted, 1 HP at 277 VAC, 10A resistive at 277 VAC, DPDT, 2 NO, 2 NC, 24 VAC coil
Specifications
Relay Throws
Double Throw
Relay Indication
No Indicator
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
24 Volt
Coil Voltage Max
300 Volt
Coil Voltage Max
30 Volt
Features
8501KF universal relays are designed for multipole switching applications at 300 VAC or lower
These relays are designed to be flange mounted into a panel
This flange mounted relay has DPDT contact arrangements
It has two normally open and two normally closed contacts
The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating
Relays can be ordered with a wide variety of coil voltages
This relay has a 24 VAC nonreplaceable coil
A green LED indicator is supplied on this relay
8501KF relays are UL component recognized and CSA certified.
