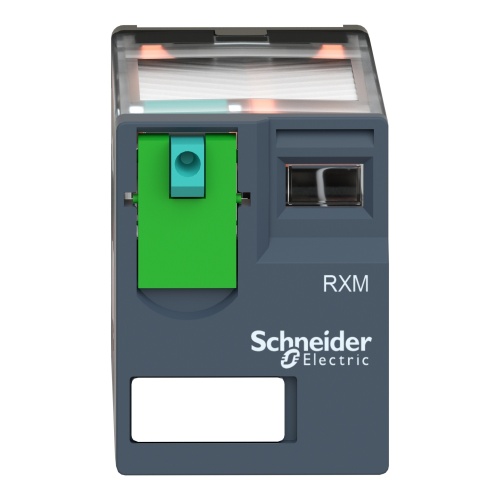

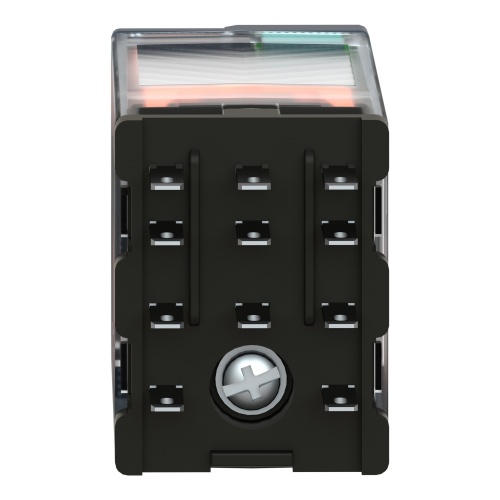

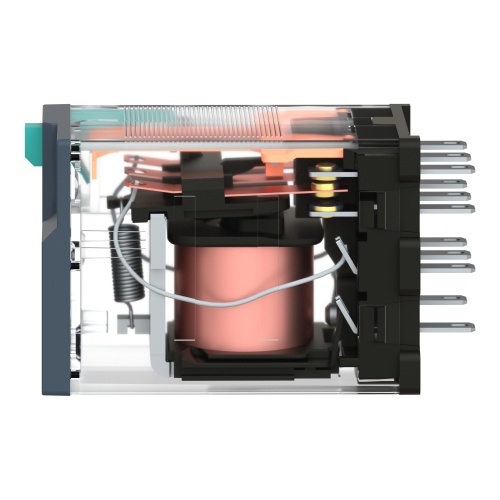

Schneider Electric RXM3AB1JD Miniature plug-in relay, 10 A, 3 CO, 12 V DC
Normally In Stock
Code: 95746
Schneider RXM3AB1JD 3 C/O Miniature Without Flat AgNi Lockable test button 12 V DC 250 V IEC 10 A -40-131 °F (-40-55 °C 10 A 28 V DC NO IEC, 10 A 250 V AC NO IEC, 5 A 28 V DC NC IEC, 5 A 250 V AC NC IEC, 10 A 30 V DC UL, 10 A 277 V AC UL 100000 cycles resistive Zelio Relay RXM 10 (MUST BUY IN PACKS OF 10)
Condition: New
CALL FOR LEAD TIME $11.04
Sale Price
$9.20
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Miniature plug-in relay, 10 A, 3 CO, 12 V DC
Specifications
Relay Indication
No Indicator
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Coil Voltage Rating
12-24 Volt
Relay Load Amperage
10 Amp @ 28 Volt
Coil Voltage Max
250 Volt
Relay Load Amperage
10 Amp @ 277 Volt
Relay Load Amperage
10 Amp @ 30 Volt
Relay Load Amperage
5 Amp @ 250 Volt
Relay Load Amperage
5 Amp @ 28 Volt
Relay Load Amperage
10 Amp @ 250 Volt
Features
Fit to customer needs, coverage of most general control panel applications
Easy to select, simple selection and wide availability
Convenient to use, easy status readiness with mechanical indicator & LED
one-step lockable test button
