Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

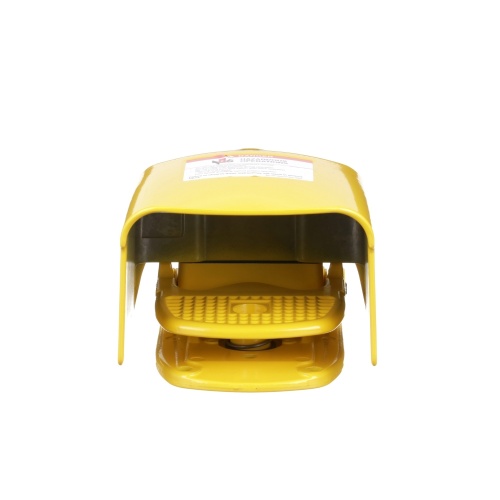

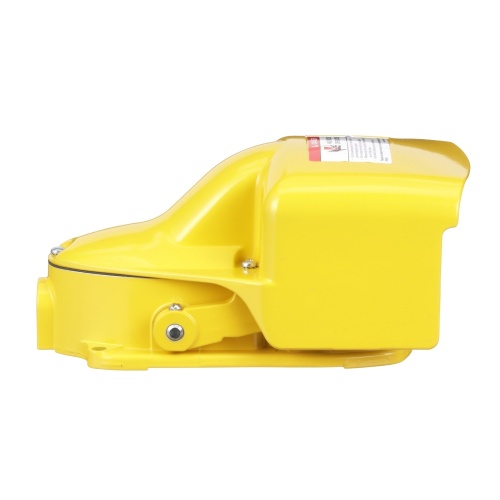

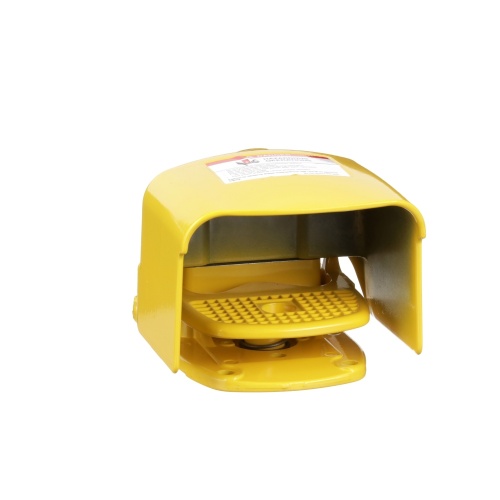

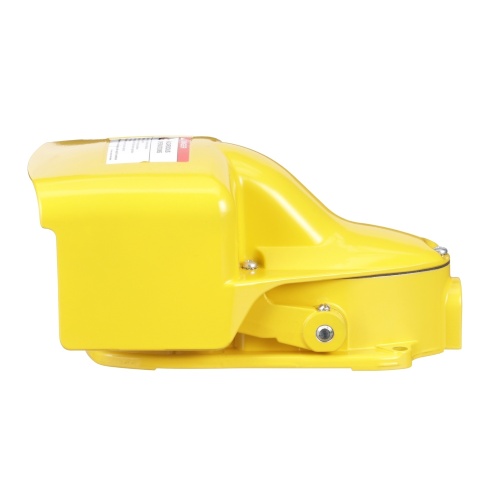

Schneider Electric 9002AW15 Foot Switch, Harmony, industrial, pedal and side shields, latch, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
Normally In Stock
Code: 95361
Schneider 9002AW15 1 step DPDT Side shield, Pedal shield Spring return with latch NEMA 2/4/13 21441 - 9002 AW FOOT SWITCHES 00785901817420 4.8 lb(US (2.18 kg 13.97 in (35.484 cm 5.50 in (13.970 cm 35.48 in (90.129 cm Footswitches Heavy Duty 9002 Industrial Foot Switches 9002 Foot
Condition: New
CALL FOR LEAD TIME$849.05
Sale Price
$707.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Foot Switch, Harmony, industrial, pedal and side shields, latch, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
Specifications
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Operation
1 Step
(Switching-Indication) Contact Configuration
DPDT
(Switching-Indication) Operation
Spring Return With Latch
Component
Foot Switch
Manufacturer
Schneider Electric
Features
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions
The type or model of foot switch suitable for each application will vary depending on many factors
This foot switch has pedal and side shields
It has a mechanical latch
The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC
For other contact ratings, refer to the catalog
The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity
Foot switch has an enclosure rating of NEMA 2, 4 and 13
The cable entry for this foot switch has a 0.75 inch NPT conduit tread
Foot switch is UL listed and CSA certified.
