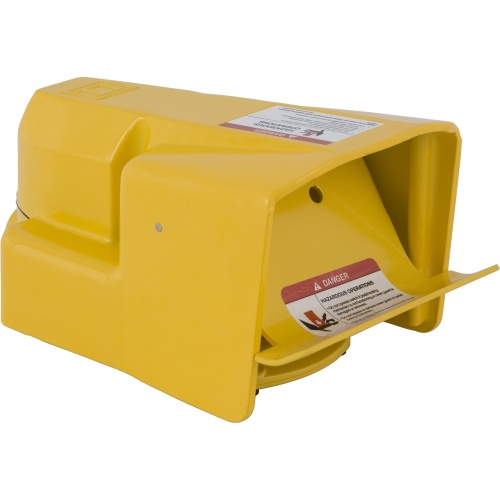

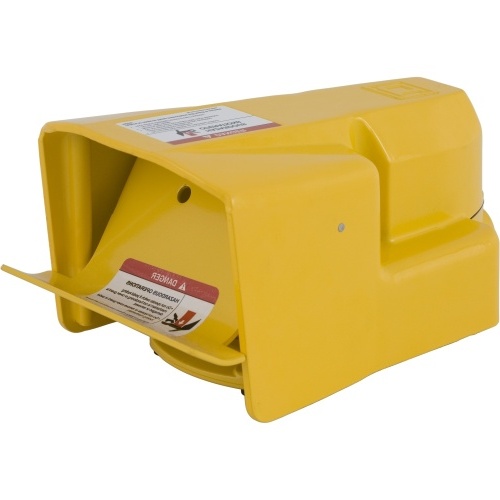

Schneider Electric 9002AW123 Foot Switch, Harmony, industrial, oversized pedal and side shields with safety door, four stage, 10A at 600 VAC, 2 DPDT
Normally In Stock
Code: 95354
Schneider 9002AW123 4 steps SPDT per step Side shield, Oversized pedal shield, Safety door Spring return NEMA 2/4/13 21441 - 9002 AW FOOT SWITCHES 00785901846314 12 lb(US (5.44 kg 15.24 in (38.710 cm 6.00 in (15.240 cm Footswitches Heavy Duty 9002 Industrial Foot Switches 9002 Fo
Condition: New
CALL FOR LEAD TIME$1588.86
Sale Price
$1324.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Foot Switch, Harmony, industrial, oversized pedal and side shields with safety door, four stage, 10A at 600 VAC, 2 DPDT
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Contact Configuration
SPDT Per Step
(Switching-Indication) Operation
4 Steps
Component
Foot Switch
Manufacturer
Schneider Electric
Features
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions
The type or model of foot switch suitable for each application will vary depending on many factors
This foot switch has an oversized pedal shield, side shields and a safety door
The two double pole double throw snap switches used for the contacts of this foot switch are rated at 10A resistive at 600 VAC
For other contact ratings, refer to the catalog
Each of the double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity
Foot switch has an enclosure rating of NEMA 2, 4 and 13
The cable entry for this foot switch has a 0.75 inch NPT conduit tread
Foot switch is UL listed and CSA certified.
