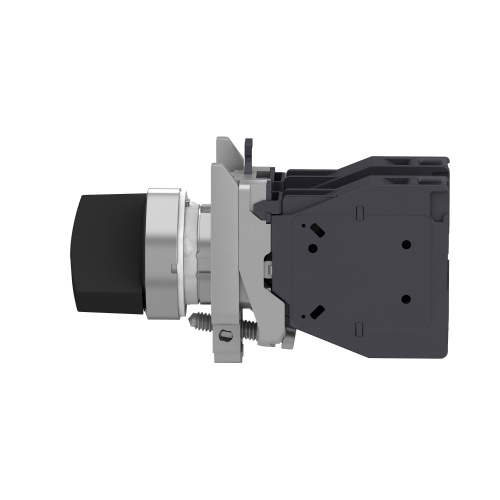

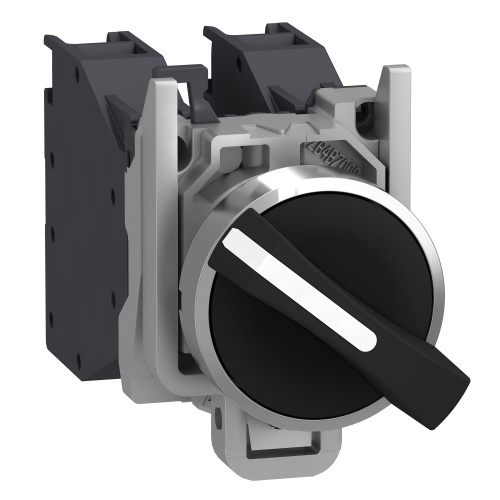

Schneider Electric XB4BD25GEX Explosive atmosphere - selector swith 2 positions stay put
Normally In Stock
Code: 95286
Schneider XB4BD25GEX Complete selector switch Black standard handle 1 NO + 1 NC stay put 2 positions 90° Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1 Zamak Chromium plated metal 0.87 in (22 m
Condition: New
Usually ships Same Day or Next Day$198.55
Sale Price
$165.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Explosive atmosphere - selector swith 2 positions stay put
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
Black
(Switching-Indication) Profile
Handle
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Positions
2 Positions
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Composition
Zamak
(Switching-Indication) Position Angles
90°
Manufacturer
Schneider Electric
Component
Selector Switch
Features
Metal bezel making it ideal for severe environments
Simple design for easy installation, servicing, modification and adaption
Compatible with standard 22mm cutout
