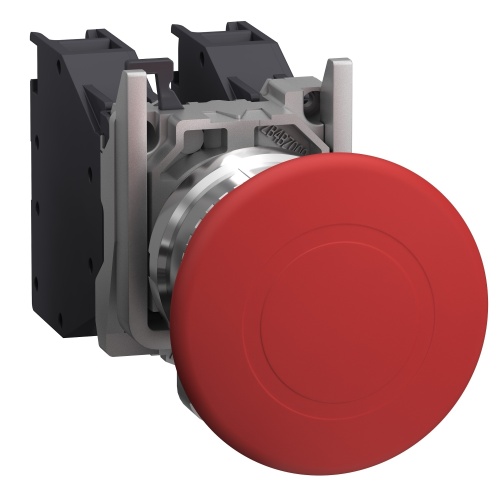

Schneider Electric XB4BT845GEX Explosive atmosphere - EMERGENCY STOP push pull
Normally In Stock
Code: 95280
Schneider XB4BT845GEX Complete emergency stop push-button Red mushroom Ø 40 mm 1 NO + 1 NC trigger action and mechanical latching Push-pull Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1 Zamak
Condition: New
Usually ships Same Day or Next Day$260.95
Sale Price
$217.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Explosive atmosphere - EMERGENCY STOP push pull
Specifications
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Composition
Zamak
(Switching-Indication) Operation
Push-Pull
(Switching-Indication) Operation
Latching
(Switching-Indication) Profile
Mushroom
(Switching-Indication) Operation
Trigger
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Metal bezel making it ideal for severe environments
Simple design for easy installation, servicing, modification and adaption
Compatible with standard 22mm cutout
