Schneider Electric XB4BS8445GEX Explosive atmosphere - EMERGENCY STOP TURN TO RELEASE
Normally In Stock
Code: 95278

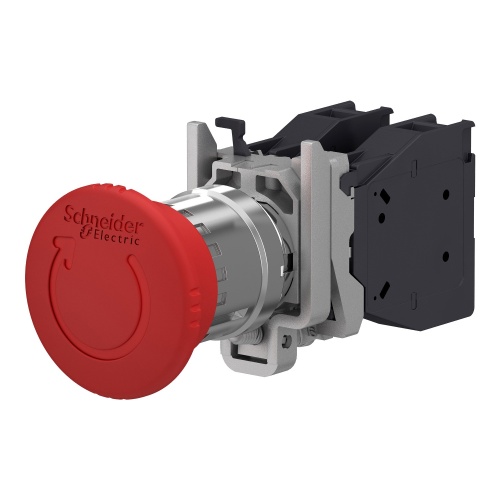

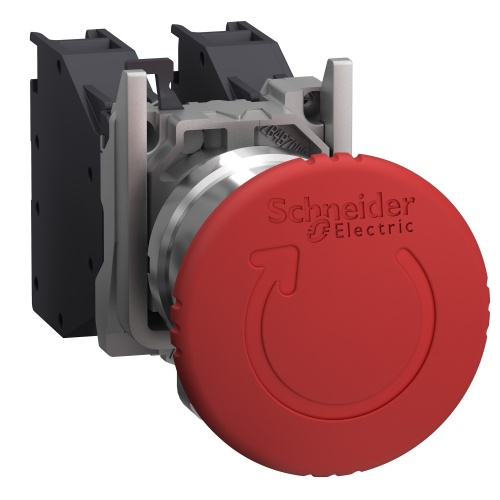

Schneider XB4BS8445GEX Complete emergency stop push-button Red mushroom Ø 40 mm 1 NO + 1 NC trigger action and mechanical latching Turn to release Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Condition: New
Usually ships Same Day or Next Day$318.25
Sale Price
$265.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Explosive atmosphere - EMERGENCY STOP TURN TO RELEASE
Specifications
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Composition
Zamak
(Switching-Indication) Operation
Turn To Release
(Switching-Indication) Operation
Latching
(Switching-Indication) Profile
Mushroom
(Switching-Indication) Operation
Trigger
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
XB4/ZB4 22mm push buttons are for industrial applications
XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar
Operator is a red turn to release emergency push button
The operator has one normally open and one normally closed contact
Contacts have UL A600, UL Q300, IEC AC15 and IEC DC13 contact ratings
Contacts have screw clamp terminals
Push button has no marking

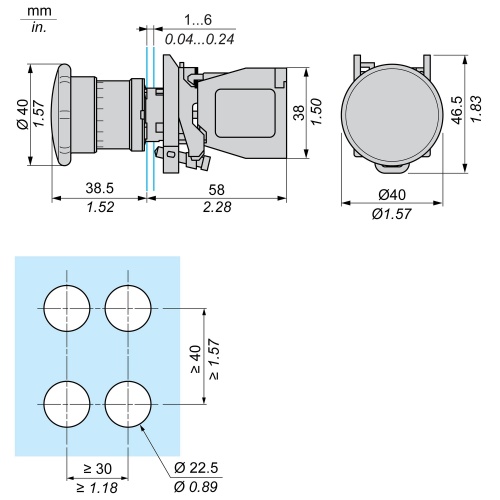

Push button is 1.18 inches tall, 1.82 inches wide and 4.70 inches deep
Push button weighs 0.31 lbs
Operator is NEMA 4, 4X and 13 rated
Also reated for IEC zone 21-22 dust zones and IEC zone 1-2 gas zones
Push button UL listed and CSA certified
It is an IP65 rated product and comes with INERIS 04ATEX9004U certification
It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections
The Harmony XB4 range offers innovative features for simple and efficient use
The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
