Code: 95256

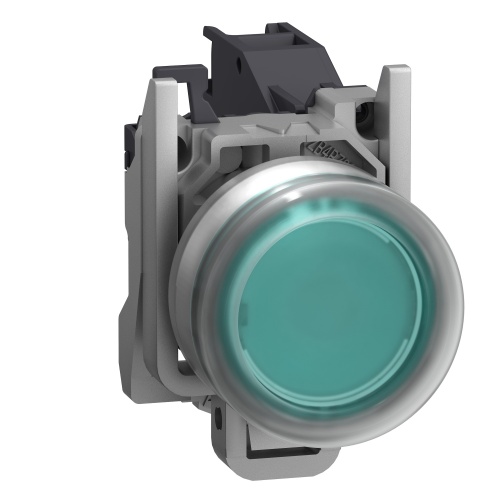

Schneider Electric XB4BP381GEX Explosive atmosphere - pushbutton green with boot and legend insertion
Normally In Stock
Schneider XB4BP381GEX Complete push-button Green projecting Booted (clear silicon for insertion of legend 1 NO spring return Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1 Zamak Chromium plated
Condition: New
Usually ships Same Day or Next Day$197.09
Sale Price
$164.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Explosive atmosphere - pushbutton green with boot and legend insertion
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Color
Green
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Shape
Rectangular
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Metal bezel making it ideal for severe environments
Simple design for easy installation, servicing, modification and adaption
Compatible with standard 22mm cutout
