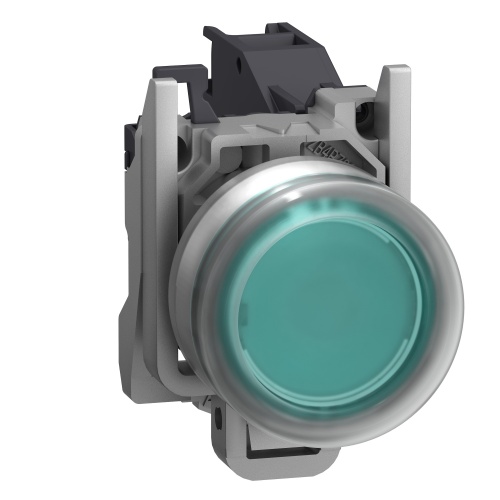

Schneider Electric XB4BP31GEX Explosive atmosphere - pushbutton green with boot
Normally In Stock
Code: 95255
Schneider XB4BP31GEX Complete push-button Green projecting Booted (clear silicon 1 NO spring return Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1 Zamak Chromium plated metal 0.87 in (22 mm Rou
Condition: New
Usually ships Same Day or Next Day$145.24
Sale Price
$121.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Explosive atmosphere - pushbutton green with boot
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Color
Green
(Switching-Indication) Composition
Zamak
(Switching-Indication) Profile
Projecting
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Metal bezel making it ideal for severe environments
Simple design for easy installation, servicing, modification and adaption
Compatible with standard 22mm cutout
