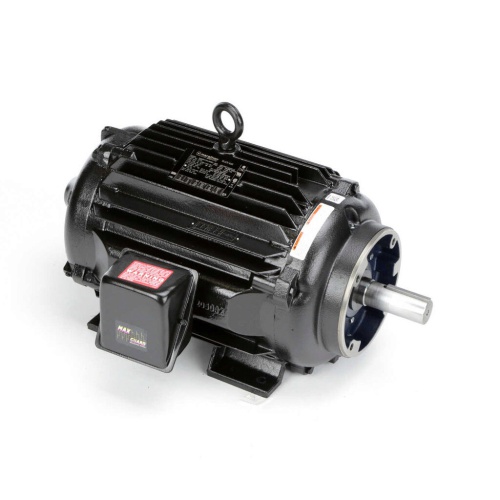

Yaskawa MTRSY001 SyMAX® motor 230/460 Volt 1800 RPM
Normally In Stock
Code: 944675
Yaskawa MTRSY001 SyMAX® motor 230/460 Volt 1800 RPM
Condition: New
Usually ships Same Day or Next Day$461.54
Sale Price
$384.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The SyMAX® motor is the next generation of technology in motor efficiency and performance. The SyMAX permanent magnet AC motors offer unique solutions for today’s demanding applications.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor RPM's
1800 RPM
Manufacturer
Yaskawa
Motor Frame Model
56C
Motor Voltage
230/460 Volt
Features
"Ultra-EfficientTM - Significant energy savings over AC induction
Max Guard® insulation system
Normal form factor (NEMA or IEC mounting and dimensions)
High Power Factor
Reduced operating temperature
Low vibration
Sound levels exceed requirements in IEEE841 specification
Low cogging torque
Optimized Back EMF
Full torque at zero speed (Infinity:1)
Normal form factor (NEMA or IEC mounting and dimensions)
Terminal block connections
LowCogTM design
Wide speed range (up to 2000:1 constant torque)
WorryFreeTM bearing system
Design-Ready to accept internally mounted AEGISTM SGR
Interior Permanent Magnet topology
Wide air gap
Precision balanced to < 0.08 in/s vibrational velocity
Low intertia rotor
High torque per amp
Comprehensive nameplate
UL Recognized, CSA Certified
CE Mark
