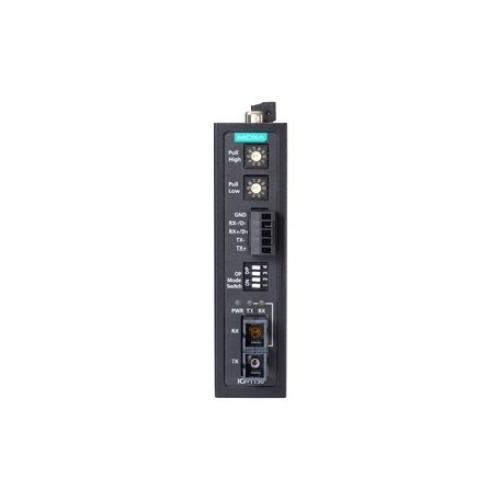

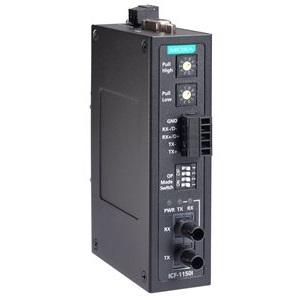

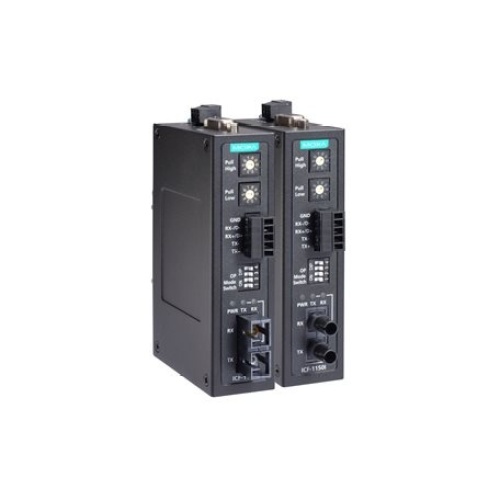

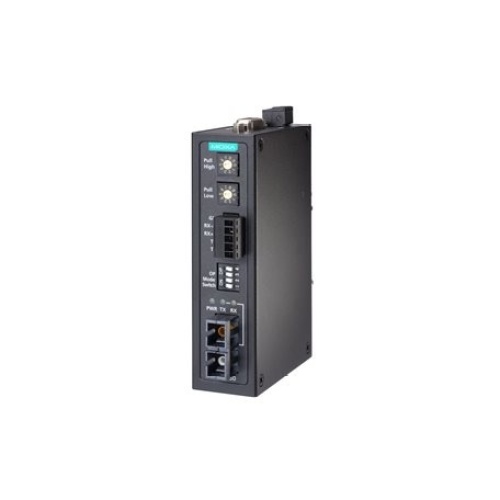

Moxa ICF-1150I-S-SC-T
Normally In Stock
Code: 9327
Moxa Industrial RS-232-422-485 to Single mode fiber converter, SC connector, 2 KV isolation, -40 to 85 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1371.85
Sale Price
$1143.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa Industrial RS-232-422-485 to Single mode fiber converter, SC connector, 2 KV isolation, -40 to 85 C operating temperature. Support 2 serial ports, with a D-sub connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data out through the other 2 ports.
Specifications
Component
Serial To Fiber Converter
Manufacturer
Moxa
Features
3-way communication: RS-232, RS-422/485, and fiber
Rotary switch to change the pull high/low resistor value
Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
-40 to 85°C wide-temperature range models available
C1D2, ATEX, and IECEx certified for harsh industrial environments
