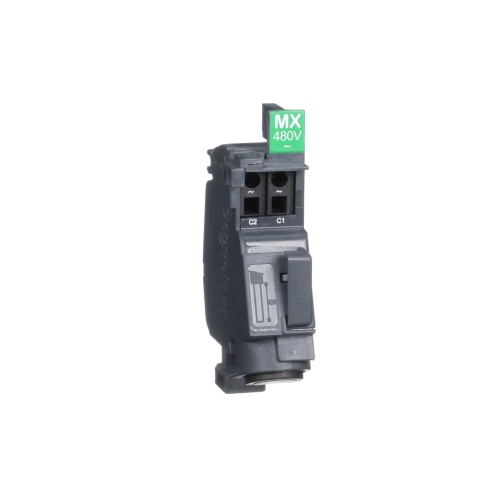

Schneider Electric LV426846 shunt trip (spring) MX - 380...415 V AC 50Hz- 440...480 V AC 60Hz
Normally In Stock
Code: 92545
Schneider LV426846 Voltage release 380-415 V AC 50 Hz, 440-480 V AC 60 Hz Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded C
Condition: New
CALL FOR LEAD TIME$587.57
Sale Price
$489.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider LV426846 Voltage release 380-415 V AC 50 Hz, 440-480 V AC 60 Hz Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded C
Specifications
Breaker Voltage Rating
380-415 VAC
Manufacturer
Square D
Component
Shunt Trip
Breaker Mount Type
Clip-On
Breaker Voltage Rating
440-480 VAC
Features
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices
This auxiliary is used for emergency off or failsafe remote opening applications
It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device
This MX auxiliary has a 380/415 VAC 50 Hz or 440/480 VAC 60 Hz rated voltage
It trips the circuit breaker when the control voltage rises above 70% of its rated value
It complies with IEC 60947-2 standard
Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
