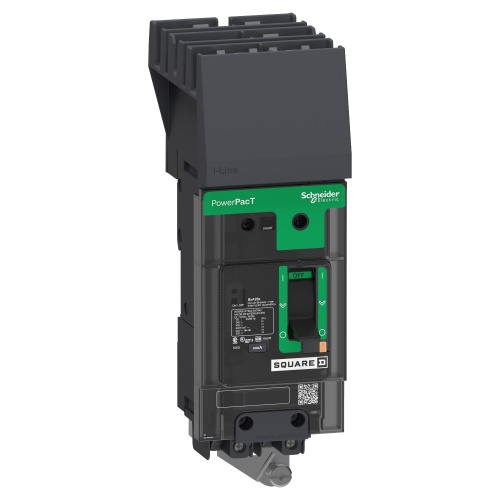

Schneider Electric BJA260601 PowerPact B Circuit Breaker, 60A, 2P, 600Y/347V AC, 25kA at 600Y/347 UL, I-Line
Normally In Stock
Code: 91844
Schneider BJA260601 Circuit breaker 60 A 2P 100 kA 208Y/120 V AC 50/60 Hz UL 489, 100 kA 240 V AC 50/60 Hz UL 489, 65 kA 480/277 V AC 50/60 Hz UL 489, 65 kA 480 V AC 50/60 Hz UL 489, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489 AB 80 % I-Line Distribution BJ 060 UL,
Condition: New
CALL FOR LEAD TIME$1460.39
Sale Price
$1216.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider BJA260601 Circuit breaker 60 A 2P 100 kA 208Y/120 V AC 50/60 Hz UL 489, 100 kA 240 V AC 50/60 Hz UL 489, 65 kA 480/277 V AC 50/60 Hz UL 489, 65 kA 480 V AC 50/60 Hz UL 489, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489 AB 80 % I-Line Distribution BJ 060 UL,
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
60 Amp
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Frame Type (Molded Case Breaker)
B Frame
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
690 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
50 Ka 250 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 208Y/120 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 600Y/347 Volt
Interrupt Rating (Molded Case Breaker)
65 Ka 480/277 Volt
Number of Jaws
4 Without Jaw Release
Features
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options
This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC
All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault
All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker
PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction
I-Line circuit breakers come with a shrouded I-Line plug on jaw
This unit has I-Line terminations on the line side and mechanical lugs on the load side
This PowerPacT B, 60A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC
This circuit breaker has a continuous current rating of 80% with an AB phase connection
PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
