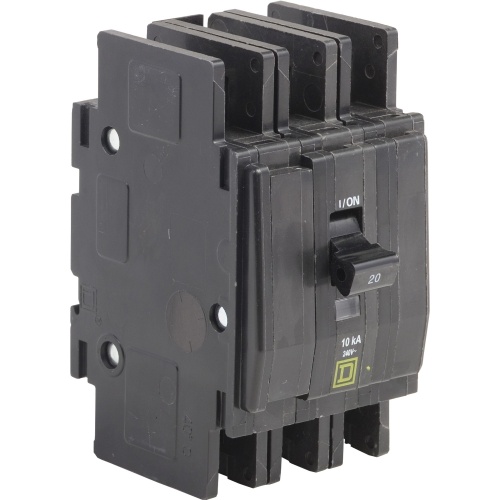

Schneider Electric QOU3105283 QOU Miniature Circuit Breaker, 10A, 3P, 240V, 10kA, Ring Terminal
Normally In Stock
Code: 90792
Schneider QOU3105283 3P 10 A Standard Miniature circuit-breaker 120/240 VAC, 240 VAC, 120 VAC, 48 VDC 10 kA 120/240 VAC, 10 kA 240 VAC, 10 kA 120 VAC, 5 kA 48 VDC QOU 00900 - QOU BREAKERS & SWITCH 45 lbf.in (5.08 N.m AWG 14-AWG 2 4.05 in (102.87 mm 2.95 in (74.93 mm 2.25 in (57.1
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$421.51
Sale Price
$351.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
QOU Miniature Circuit Breaker, 10A, 3P, 240V, 10kA, Ring Terminal
Specifications
Breaker Amperage Rating
10 Amp
Breaker Number of Poles
Three Pole
Breaker Voltage Rating
120 VAC
Breaker Voltage Rating
240 VAC
Breaker Voltage Rating
48 VDC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Line
QOU
Features
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications
QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems
These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication
They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet
This three pole QOU miniature circuit breaker is rated as 10A, 240 VAC
This circuit breaker provides 10 kA breaking capacity
A full line of accessories are available for these circuit breakers
The ring tongue connectors will accept one 14 AWG to 2/0 AWG copper or aluminum wire

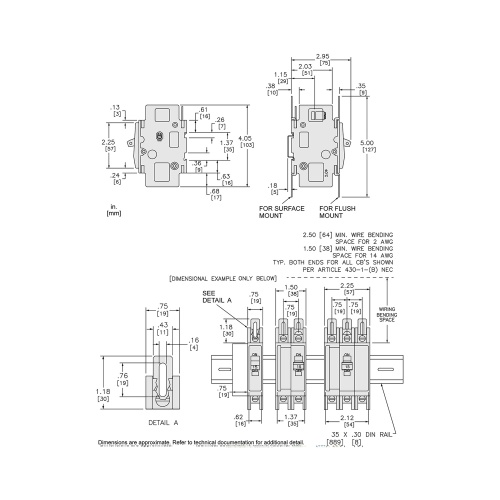

This circuit breaker has a maximum height of 4.05 inches, a maximum width of 2.25 inches and maximum depth of 2.95 inches
QOU circuit breakers are UL Listed and CSA Certified.
