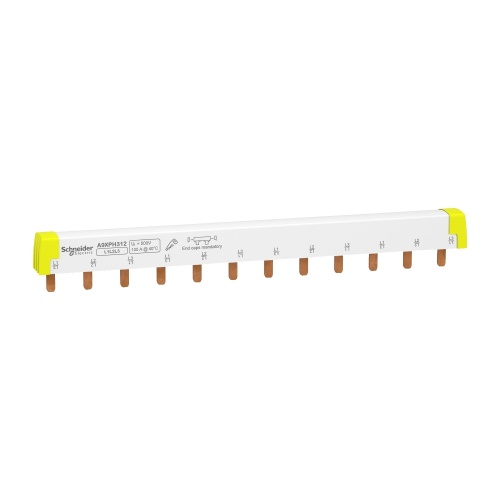

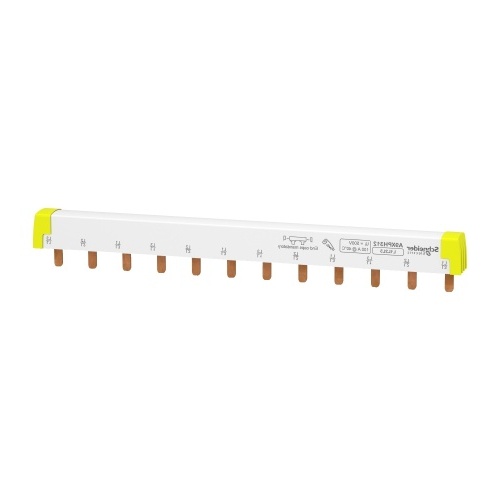

Schneider Electric A9XPH312 Acti 9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
Normally In Stock
Code: 90420
Schneider A9XPH312 Comb busbar IEC 60947-7-1, IEC 61439-2 415 VAC Acti 9 iC60, Acti 9 iK60, Acti 9 iID, Acti 9 iID K, Acti 9 iSW, Acti 9 iSW-NA, Multi 9 C60 Acti 9 4 ways 3 L Cuttable 12 L1 L2 L3 01078 - DE2 MISC 8.66 in (220 mm DE2 00785901837442 1 0.23 lb(US (0.10 kg Yes DE 1.1
Condition: New
CALL FOR LEAD TIME$111.54
Sale Price
$92.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Acti 9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
Specifications
Breaker Voltage Rating
480 VAC
Component
Busbar
Manufacturer
Square D
Features
This Acti 9 accessory is solution for safe and reliable comb busbar
It is made for 1 pole and 3 poles devices, rated at 100 amperes and it has 12 modules. This product benefits from Schneider Electric expertise with more than 40 years developing modular devices for commercial and industrial applications
Quickly and safely build your main distribution board with a reliable and safe comb busbar from Schneider Electric
100 A current rating, can fit the most demanding applications
Ideal for 3 phase installations
Insulated comb busbar to protect users against electric shocks and installation against arc flash faults
The Ie rated operational current at 40°C is 100A
The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers
The Ui rated insulation voltage is 500VAC
The Ue rated operational voltage is 415VAC
The color of the device is white RAL9003
The pollution degree is 3
According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s
It complies with IEC 60947-7-1 and IEC 61439-2 standards.
