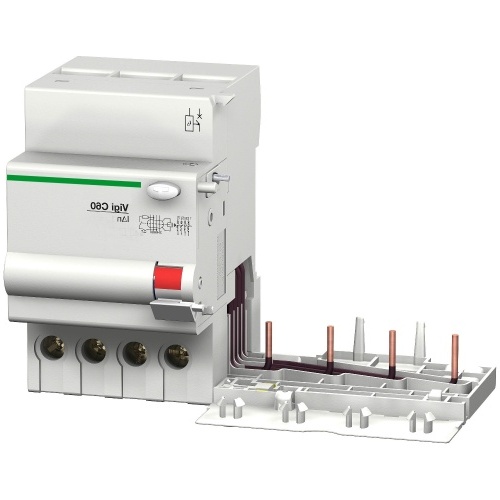

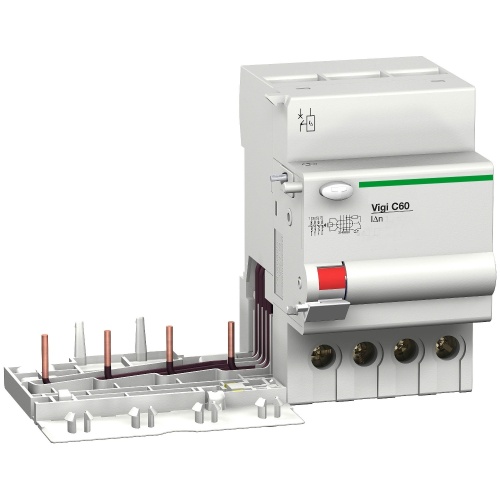

Schneider Electric M9V14463 Multi 9 - Vigi C60 - 4P - 63A - class AC - 230/400 V - 300mA
Normally In Stock
Code: 90329
Schneider M9V14463 63 A EN/IEC 61009-1 4P Add-on residual current devices Vigi C60 EN/IEC 61009-1, EN/IEC 61009-2-1 Tunnel type terminal bottom 0.00-0.05 in² (1-35 mm² - rigid, Tunnel type terminal bottom 0.00-0.04 in² (1-25 mm² - flexible, Tunnel type termin
Condition: New
CALL FOR LEAD TIME$825.29
Sale Price
$687.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Multi 9 - Vigi C60 - 4P - 63A - class AC - 230/400 V - 300mA
Specifications
Breaker Number of Poles
Four Pole
Breaker Voltage Rating
480 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Vigi C60 is a modular add-on residual current devices
It is a 4P and rated current is 63A
The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards
This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard
The Ue rated operational voltage is 400VAC or 415VAC
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
The pollution degree is 3
It can be mounted on DIN rail
The width in 9mm pitches is 7
The product color is light grey (RAL7035)
The dimensions are (W) 63mm x (H) 87mm x (D) 74mm
The weight is 210g
The degree of protection is IP20 and IP40 in an enclosure
The operating temperature is -5°C to 60°C
The storage temperature is -40°C to 60°C.
