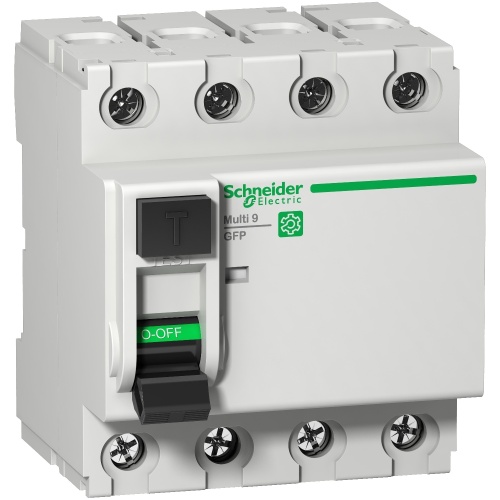

Schneider Electric M9R84425 Multi 9 - GFP - RCCB - 4P - 25A - class A SI - 480Y/277 V - 260 mA instantaneous
Normally In Stock
Code: 90312
Schneider M9R84425 25 A 104 °F (40 °C EN/IEC 61008-1 4P Residual current circuit breaker (RCCB GFP EN/IEC 61008-1, UL 1053 Tunnel type terminals top or bottom 0.00-0.04 in² (1-25 mm² AWG 18-AWG 3 - flexible, Tunnel type terminals top or bottom 0.00-0.05 in² (
Condition: New
Normally Stocked$416.77
Sale Price
$347.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Multi 9 - GFP - RCCB - 4P - 25A - class A SI - 480Y/277 V - 260 mA instantaneous
Specifications
Breaker Number of Poles
Four Pole
Breaker Voltage Rating
277 VAC
Breaker Voltage Rating
480 VAC
Breaker Voltage Rating
240 VAC
Breaker Voltage Rating
480Y VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This product is a Multi GFP residual current circuit breaker (RCCB)
It is a 4P circuit breaker with 25A In rated current, a sensitivity of 260mA with a A-SI type protection class
It protects persons against electric shock by direct contact
It also protects installations against fire risks
The tripping upon fault is indicated by a red mechanical status indicator on the front panel
The A-SI type offers enhanced immunity to electrical disturbances
This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings
It is compliant with IEC/EN 61008-1 standard
The (Im/IΔm) rated breaking and making short circuit capacity is 1500A
The (Inc/IΔc) conditional rated short circuit current is 10kA
It has a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 240VAC
The Ui rated insulation voltage is 440VAC
The Uimp rated impulse withstand voltage is 6kV
The frequency is 50Hz or 60Hz
It is DIN rail mountable
The width in 9mm pitches is 8
The product colour is light grey (RAL7035)
The dimensions are (W) 72mm x (H) 81mm x (D) 60mm
The weight is 0.45kg
It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure
The operating temperature is from -25°C to 60°C
The storage temperature is from -40°C to 70°C.
