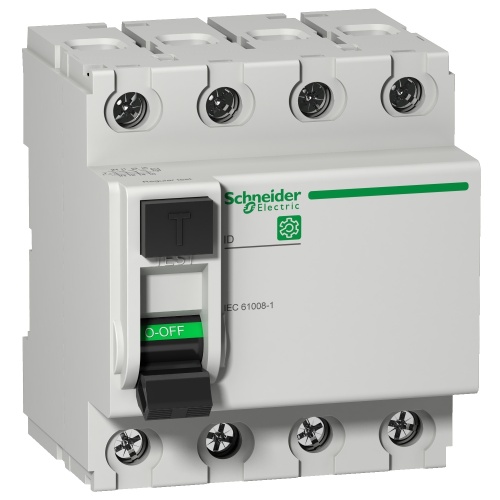

Schneider Electric M9R14440 Multi 9 ID - residual current circuit breaker - 4P - 40A - 300mA - type AC
Normally In Stock
Code: 90311
Schneider M9R14440 40 A 4P Residual current circuit breaker (RCCB ID EN/IEC 61008-1 Tunnel type terminal top or bottom 0.00-0.05 in² (1-35 mm² - rigid, Tunnel type terminal top or bottom 0.00-0.04 in² (1-25 mm² - flexible, Tunnel type terminal top or bottom 3
Condition: New
CALL FOR LEAD TIME$439.87
Sale Price
$366.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Multi 9 ID - residual current circuit breaker - 4P - 40A - 300mA - type AC
Specifications
Breaker Number of Poles
Four Pole
Breaker Voltage Rating
480 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This is a Multi ID residual current circuit breaker (RCCB)
It is a 4P circuit breaker with In rated current of 40A, AC type protection class and a 300mA earth leakage sensitivity
This product protects against electrical shock by indirect contact and fire hazards
The tripping upon fault is indicated by a red mechanical status indicator on the front panel
This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings
It is compliant with IEC/EN 61008-1 standard
The (Im/IΔm) rated breaking and making short circuit capacity is 400A
The (Inc/IΔc) conditional rated short circuit current is 10kA
The electrical endurance is up to 2000 cycles
The mechanical endurance is up to 20000 cycles
The Ue operational voltage is 380VAC to 415VAC
The Ui rated insulation voltage is 440VAC
The Uimp rated impulse withstand voltage is 6kV
The frequency is 50Hz
It is DIN rail mountable
The width in 9mm pitches is 8
The product colour is light grey (RAL7035)
The dimensions are (W) 72mm x (H) 81mm x (D) 73mm
The weight is 0.45kg
It has an IP20 degree of protection
It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard
The operating temperature is from -5°C to 40°C
The storage temperature is from -40°C to 60°C.
