Code: 893041

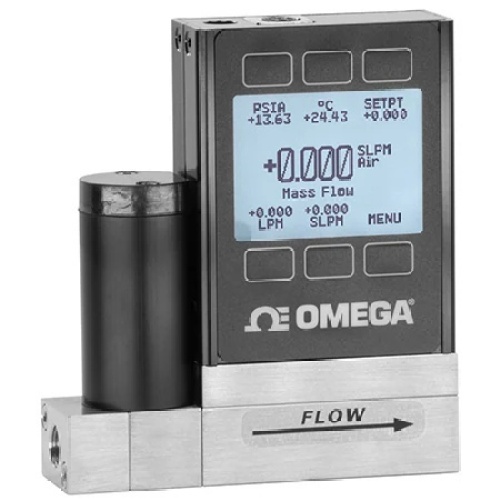

Omega FMA-2615A-I GAS MASS FLOW CNTL 5 SCCM 4/20
Normally In Stock
Omega FMA-2615A-I GAS MASS FLOW CNTL 5 SCCM 4/20
Condition: New
Usually ships Same Day or Next Day$4446.86
Sale Price
$3705.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Omega FMA-2615A-I GAS MASS FLOW CNTL 5 SCCM 4/20
Specifications
Component
Controller
Manufacturer
Omega Engineering
Features
The FMA-2600A Series mass and volumetric flow controllers use the principle of differential pressure within a laminar flow field to determine and control mass flow rate
A laminar flow element (LFE) inside the meter forces the gas into laminar (streamlined) flow
Inside this region, the Poiseuille equation dictates that the volumetric flow rate be linearly related to the pressure drop
A differential pressure sensor is used to measure the pressure drop along a fixed distance of the LFE
This, along with the viscosity of the gas, is used to accurately determine the volumetric flow rate
Separate absolute temperature and pres- sure sensors are incorporated and correct the volumetric flow rate to a set of standard condi- tions
This standardized flow rate is commonly called the mass flow rate and is reported in units such as standard cubic feet per minute (SCFM) or standard liters per minute (SLM)
The controller uses a true proportional valve coupled to the flow body to control flow using the integral PID loop controller
Standard units include a 0 to 5 V output (4 to 20 mA optional) and RS232 communications
The gas-select feature and the setpoints can be adjusted from the front keypad or via RS232 communications
Volumetric flow, mass flow, absolute pressure, and temperature can all be viewed or recorded through the RS232 connection
It is also possible to multi-drop up to 26 units on the same serial connection to a distance of 46 m (150').
