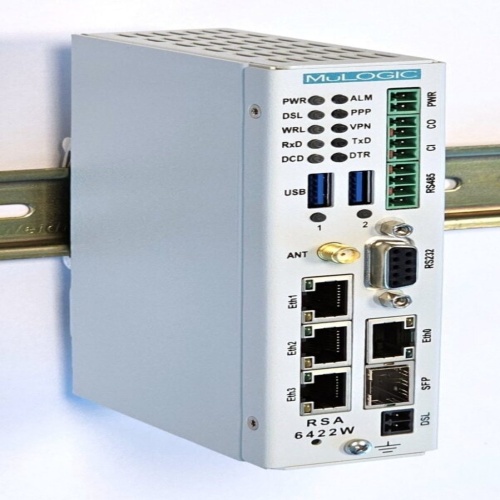

Mulogic RSA-6422W4/Vr3 Industrial modem-router with ADSL/VDSL2, WWAN, SFP and Ethernet WAN ports.
Normally In Stock
Code: 887893
Mulogic RSA-6422W4/Vr3 The MuLogic RSA-6422W4 facilitates remote connectivity to unattended locations, such as power substations, traffic management system cabinets, and various other sites housing Operational Technology (OT) equipment.
Condition: New
Usually ships within 2 days$1629.24
Sale Price
$1357.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mulogic RSA-6422W4/Vr3 The MuLogic RSA-6422W4 facilitates remote connectivity to unattended locations, such as power substations, traffic management system cabinets, and various other sites housing Operational Technology (OT) equipment.
Specifications
(Modem/Router) Data Type
Ethernet
(Modem/Router) Data Type
Serial
(Modem/Router) Serial Ports
2 Serial Ports
(Modem/Router) Communication Medium
DSL Line (ADSL)
(Modem/Router) Ethernet Ports
4 Ethernet Ports
(Modem/Router) USB Ports
2 USB 2.0 Ports
(Modem/Router) Type
VDSL2 Modem
(Modem/Router) Communication Medium
DSL Line (VDSL2)
(Modem/Router) Type
ADSL Router
Manufacturer
Mulogic
Component
ADSL/VDSL2 Modem-Router
Features
Access router with multiple WAN ports: Ethernet, ADSL/VDSL2 and 2G/3G/4G Cat.4 Wireless WAN.
DSL interface supports standards for VDSL2, ADSL, ADSL2 and ADSL2+.
SFP interface supports DDM/DOM capability for inventory and diagnostics of SFP modules for fiber optic lines and Ethernet.
One hardware version for ADSL Annex A (PSTN overlay) and Annex B/J (ISDN overlay).
VDSL2 downstream rates up to 350 Mbit/s, upstream rates up to 100 Mbit/s.
ADSL downstream rates up to 24 Mbit/s, upstream rates up to 1.4 Mbit/s (Annex A/B)
upstream rates up to 3 Mbit/s in Annex A/M and Annex B/J modes.
Global WWAN radio band support, dual SIM with automatic SIM failover.
WWAN data rates up to 150/50 Mbit/s (downlink/uplink).
ADSL encapsulation protocols: PPPoA, PPPoE, IPoA, MER/IPoE and CLIP.
RFC4638 support for allowing PPPoE MTU size up to 1500.
Four Ethernet ports: 10/100/1000BaseT, Auto-MDI/MDIX
each port can be configured as LAN or WAN port.
Ethernet WAN ports are compatible with fiber optic ONTs for AON and PON connections.
Automatic failover operation between xDSL, Ethernet WAN and Wireless WAN port.
IEEE 802.1Q VLAN support for PTM, and Ethernet LAN and WAN interfaces.
Ethernet port supports SCADA protocols such as Modbus/TCP, DNP3/IP and IEC60870-5-104.
Two external USB 3.0 ports (USB 3.2 Gen 1) and one internal USB port for circuit expansion or memory devices.
Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485) and Modbus/TCP to Modbus/RTU conversion
data rates from 300 to 115200 bit/s.
Serial ports support SCADA protocols such as Modbus/RTU, DNP3 and IEC60870-5-101.
IPsec and OpenVPN tunnels for secure communication over Wide Area Networks or the internet.
Policy-based and route-based IPsec
route-based IPsec offering virtual IPsec interfaces.
GRE tunneling for encapsulating multicast traffic, such as RIPv2 and OSPF, over IPsec tunnels.
Secure Layer 2 Ethernet bridging using OpenVPN tunnels.
Secure access to serial port gateways using a VPN tunnel or firewall restrictions.
Up to 6 separate LAN networks, each with its own dedicated DHCP server.
Static routing and dynamic routing (BGP, OSPF, RIPv1 and RIPv2).
Dynamic NAT (IP masquerading) for outgoing connections.
Static NAT (port forwarding) for incoming connections.
Stateful firewall for access control, data forwarding, and rate limiting (DoS protection).
Device management via HTTP/HTTPS, CWMP (TR-069), SNMP, SSH, and Telnet.
Firmware and settings update via remote connection or local Ethernet port.
Role-based access control for administrative access.
RADIUS and TACACS+ support for user authentication and accounting.
IEEE 802.1X Port-based Network Access Control.
Certificate management and enrolment: Manual or SCEP.
System alerts sent by means of Email, SNMP traps and SMS.
Independent watchdog/reset controller for monitoring vital system functions.
Dry contact sensor (input) with status reporting and alerting via SNMP, Email or SMS.
Dry contact (output) for automatic alarm/status indication or remote control.
Sensors for system temperature (system and WWAN), power consumption, and USB overcurrent with status reporting via SNMP and HTTP/HTTPS and alerting via SNMP trap, Email or SMS.
Power supply voltage: 10-36 VDC / 22-26 VAC (Vr1), or 18-72 VDC (Vr3).
Extended operating temperature range: -40°C to +70°C.
Din-Rail or panel mounting.
