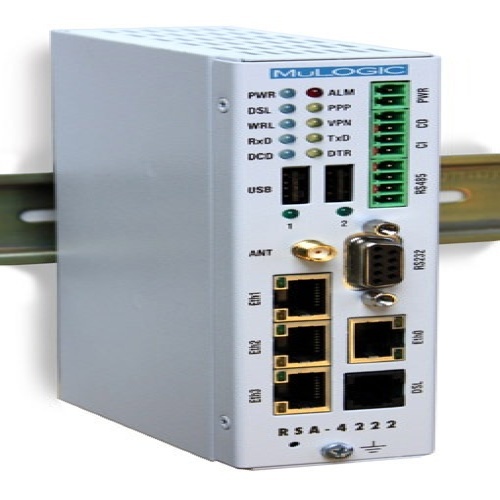

Mulogic RSA-4222WU/Vr3 Industrial modem-router with ADSL/VDSL2, Ethernet WAN and LTE450 WWAN port
Normally In Stock
Code: 887877
Mulogic RSA-4222WU/Vr3 The MuLogic RSA-4222WU is a router for providing access to unmanned remote locations such as power substations, traffic management systems and various other remote site automation equipment.
Condition: New
Usually ships within 2 days$1453.10
Sale Price
$1210.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mulogic RSA-4222WU/Vr3 The MuLogic RSA-4222WU is a router for providing access to unmanned remote locations such as power substations, traffic management systems and various other remote site automation equipment.
Specifications
(Modem/Router) Data Type
Ethernet
(Modem/Router) Data Type
Serial
(Modem/Router) Serial Ports
2 Serial Ports
(Modem/Router) Communication Medium
DSL Line (ADSL)
(Modem/Router) Ethernet Ports
4 Ethernet Ports
(Modem/Router) USB Ports
2 USB 2.0 Ports
(Modem/Router) Type
VDSL2 Modem
(Modem/Router) Communication Medium
DSL Line (VDSL2)
(Modem/Router) Type
ADSL Router
Manufacturer
Mulogic
Component
ADSL/VDSL2 Modem-Router
Features
Access router with multiple WAN ports: Ethernet, ADSL/VDSL2 and Cat.4 Wireless WAN
with LTE450 (utility network) support.
DSL interface supports standards for VDSL2, ADSL, ADSL2 and ADSL2+
One hardware version for ADSL Annex A (PSTN overlay) and Annex B/J (ISDN overlay).
ADSL Downstream rates up to 24 Mbit/s, upstream rates up to 1.4 Mbit/s (Annex A/B).
Upstream rates up to 3 Mbit/s in Annex A/M and Annex B/J modes.
VDSL2 Downstream rates up to 100 Mbit/s, upstream rates up to 50 Mbit/s.
WWAN radio bands supported: 31 and 72 (LTE450), and 3, 7, 20 (LTE)
WWAN Data rates: up to 100/50 Mbit/s (Downlink/Uplink)
Dual SIM (optional) for WWAN fall back to regular LTE networks.
ADSL Encapsulation Protocols: PPPoA, PPPoE, IPoA, MER/IPoE and CLIP.
RFC4638 support for allowing PPPoE MTU size up to 1500.
Ethernet ports: 10/100baseT, Auto-MDI/MDIX. All can be used as LAN or WAN port.
Automatic Failover operation between xDSL, Ethernet or Wireless WAN ports.
IEEE 802.1Q VLAN support for PTM, and Ethernet LAN interfaces.
Automatic Failover operation between xDSL, Ethernet WAN and Wireless WAN port.
Ethernet port supports SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104.
Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485). Data rates from 300 to 115200 bit/s.
Serial ports support SCADA protocols like Modbus RTU/ASCII, DNP3 and IEC60870-5-101.
IPsec and OpenVPN tunnels for secure communication with Ethernet and serial ports.
Policy-based and route-based IPsec.
GRE tunnels for linking multicast protocols like RIPv2 and OSPF over IPsec tunnels.
Secure Layer-2 Ethernet bridging over OpenVPN tunnels.
Secure access to Serial port gateways. (VPN tunnel or access restrictions in firewall).
Up to 4 separate LAN networks with individual DHCP servers.
Static routing and dynamic routing (BGP, OSPF, RIPv1 and RIPv2).
Dynamic NAT (IP masquerading) for outgoing connections.
Static NAT (Port forwarding) for incoming connections.
Stateful firewall for access control, data forwarding and rate limiting (DoS protection).
Device Management services: HTTP/HTTPS, CWMP(TR-069), SNMP and CLI.
Firmware updates via local Ethernet port, remotely via HTTP/HTTPS (upload or download), or invoked by CWMP(TR-069), SNMP, web interface or CLI command.
Role-based access control for administrative access.
IEEE 802.1X Port-based Network Access Control.
Certificate management and enrolment: Manual or SCEP.
System alerting by means of: Email, SNMP traps and SMS.
Independent watchdog/reset controller for monitoring vital system functions.
Dry contact sensor (input) with status reporting and alerting via SNMP, Email or SMS.
Dry contact (output) for automatic alarm/status indication or remote control.
Temperature sensors (system and WWAN) with status reporting via SNMP and HTTP
and alerting via SNMP trap, Email or SMS.
Isolated supply voltage input for industrial applications (suitable for AC and DC).
Supply voltage ranges: 11-36Vdc/11-28Vac, 18-60Vdc/18-30Vac or 18-72Vdc.
Extended operating temperature range: -40°C to +70°C
Din-Rail or panel mounting
