Code: 887866

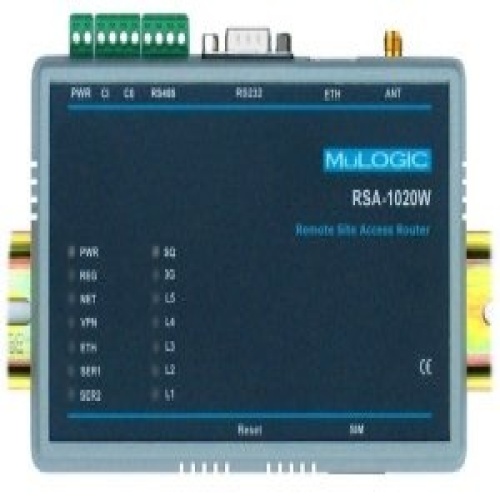

Mulogic RSA-1020DW4/Vr1 4G (LTE Cat.4) Cellular Remote Site Access Router
Normally In Stock
Mulogic RSA-1020DW4/Vr1 The MuLogic RSA-1020DW4 is a cellular router for providing access to unmanned remote locations such as power substations, traffic management systems and various other remote site automation equipment.
Condition: New
Usually ships within 2 days$1298.47
Sale Price
$1082.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mulogic RSA-1020DW4/Vr1 The MuLogic RSA-1020DW4 is a cellular router for providing access to unmanned remote locations such as power substations, traffic management systems and various other remote site automation equipment.
Specifications
(Modem/Router) Data Type
Ethernet
(Modem/Router) Ethernet Ports
1 Ethernet Port
(Modem/Router) Data Type
Serial
(Modem/Router) Serial Ports
2 Serial Ports
Manufacturer
Mulogic
Component
Cellular Router
Features
Access router for cellular mobile wireless networks: 2G/3G/4G Cat.3
WWAN Data rates: up to 100/50 Mbit/s (Downlink/Uplink)
Ethernet port: 10/100baseT, Auto-MDI/MDIX.
IEEE 802.1Q VLAN support for Ethernet LAN interface.
Ethernet port supports SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104.
Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485). Data rates from 300 to 115200 bit/s.
Serial ports support SCADA protocols like Modbus RTU/ASCII, IEC60870-5-101 and DNP3
IPsec and OpenVPN tunnels for secure communication with Ethernet and serial ports.
GRE tunnels for linking multicast protocols like RIPv2 and OSPF over IPsec tunnels.
Secure Layer-2 Ethernet bridging over OpenVPN tunnels.
Secure access to Serial port gateways. (VPN tunnel or access restrictions in firewall).
Up to 4 separate LAN networks (over VLAN) with individual DHCP servers.
Static routing and dynamic routing (BGP, OSPF, RIPv1 and RIPv2).
Dynamic NAT (IP masquerading) for outgoing connections.
Static NAT (Port forwarding) for incoming connections.
Stateful firewall for access control, data forwarding and rate limiting (DoS protection).
Device Management services: HTTP/HTTPS, CWMP(TR-069), IXplatform, SNMP and CLI.
Firmware updates via local Ethernet port, remotely via HTTP/HTTPS (upload or download), invoked by CWMP(TR-069), SNMP, web interface or CLI command.
Role-based access control for administrative access.
RADIUS support for user authentication. Access roles determined by RADIUS attributes.
IEEE 802.1X Port-based Network Access Control
Certificate management and enrolment: Manual or SCEP.
System alerting by means of: Email, SNMP traps and SMS.
Independent watchdog/reset controller for monitoring vital system functions.
Dry contact sensor (input) with status reporting and alerting via SNMP, Email or SMS.
Dry contact (output) for automatic alarm/status indication or remote control.
Temperature sensors (system and WWAN) with status reporting via SNMP and HTTP
and alerting via SNMP trap, Email or SMS.
Isolated supply voltage input for industrial applications (suitable for AC and DC).
Supply voltage ranges: 11-36Vdc/11-28Vac, 18-60Vdc/18-30Vac or 18-72Vdc.
Extended operating temperature range: -40°C to +70°C
Din-Rail or panel mounting.
