Code: 87744

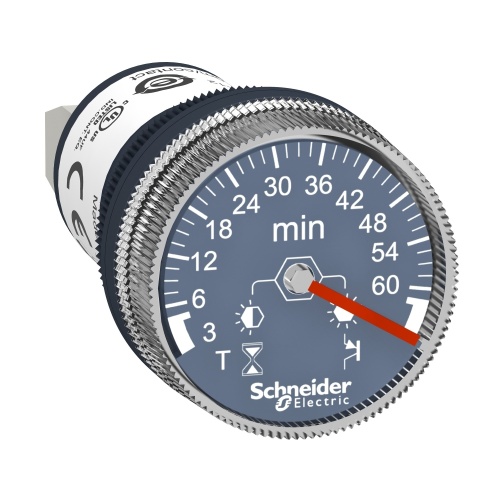

Schneider Electric XB5DTB25 Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 24 V DC
Normally In Stock
Schneider XB5DTB25 24 V DC Timer Plastic Round 1 Harmony XB5 A 50 V EN 60947-1, 50 V IEC 60664-1 Plastic 0.87 in (22 mm Screw terminals 1 x 4 mm² EN/IEC 60947-1, Screw terminals 1 x 2.5 mm² EN/IEC 60947-1 2.44 in (62 mm 0.06 lb(US (0.027 kg 4.43 lbf.in (0.5 N.m 4 kV EN 60947-1, 4
Condition: New
CALL FOR LEAD TIME$69.77
Sale Price
$58.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 24 V DC
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Green
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Shape
Rectangular
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) Current Consumption
14 mAmp
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
