Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

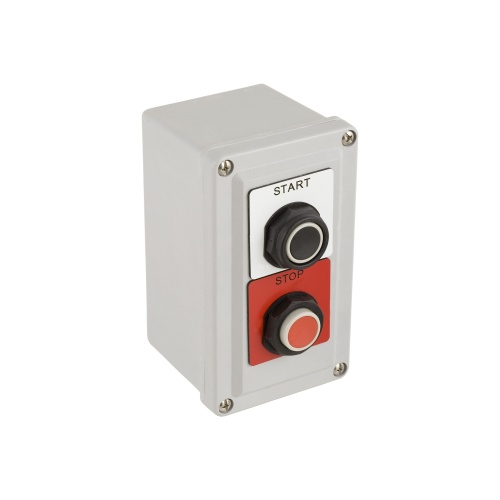

Schneider Electric 9001SKY201 CONTROL STATION + OPERATORS 2 push-buttons 1 NO + 2 NC
Normally In Stock
Code: 87674
Schneider 9001SKY201 Control station Harmony 9001KY NEMA 13, NEMA 3, NEMA 4, NEMA 1 30mm Push Buttons Harmony 30 mm 9001 SK Plastic Push Buttons Control station
Condition: New
Normally Stocked$429.42
Sale Price
$357.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
CONTROL STATION + OPERATORS
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 4
Component
Control Station
Manufacturer
Schneider Electric
Features
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications
These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more
This assembled control station has polymeric (plastic) enclosure (9001SKY2) with two push button operators
Control station has a black full guard momentary push button (9001SKR1B) in the top hole
The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1)
The operator has a legend plate that is marked START (9001SKN101WP)
Control station has a red no guard momentary push button (9001SKR3R) in the bottom hole
The push button has a contact block with 1 normally closed contact (9001KA3)
The operator has a red legend plate that is marked STOP (9001SKN102RP)
The enclosure has one 0.75 inch conduit hub with 14 NPT thread
Enclosure is 7.65 inches tall, 3.82 inches wide and 4.53 inches deep
This enclosure is rated for NEMA 1, 3, 4, 4X 6, 12 and 13 environments
The control station is UL Listed and CSA certified
\The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
