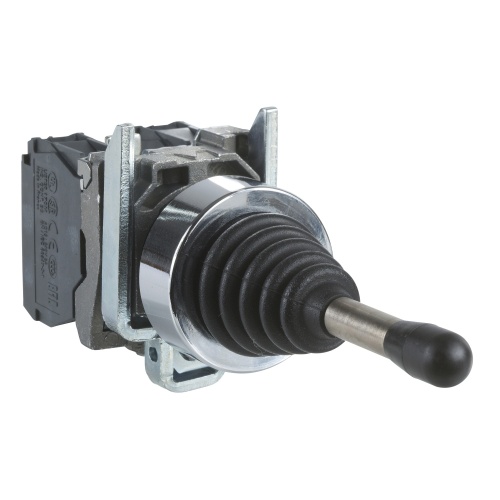

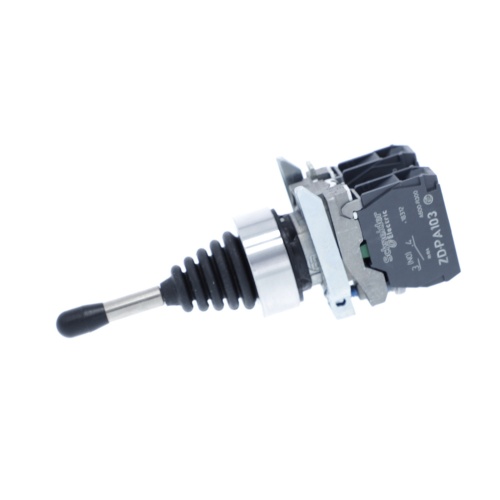

Schneider Electric XD4PA22 Joystick controller plastic, Ø22, 2 directions, spring return, 1 NO
Normally In Stock
Code: 87578
Schneider XD4PA22 Spring return to 0 position, long operating shaft 2.13 in (54 mm Joystick controller 1 NO 3 positions Chromium plated metal Round Standard 2 directions 1 Harmony XDA 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix
Condition: New
Normally Stocked$289.43
Sale Price
$241.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Joystick controller plastic, Ø22, 2 directions, spring return, 1 NO
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Positions
3 Positions
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Composition
Zamak
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Amperage
0.1 Amp
Manufacturer
Schneider Electric
Component
Joystick
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
