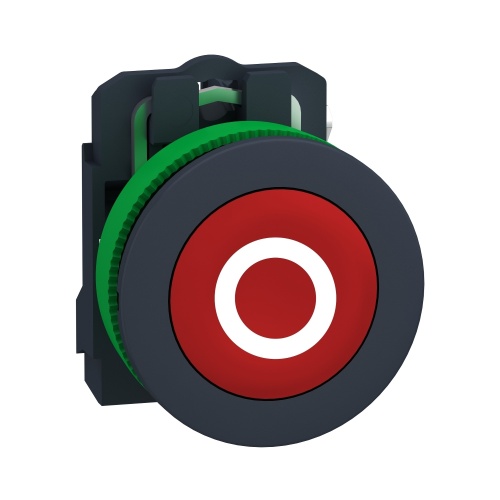

Schneider Electric XB5FA4322 flush mounted red flush caps pushbutton white marked "O" 1NC screw clamp
Normally In Stock
Code: 87487
Schneider XB5FA4322 spring return Push-button 1 NC ZBYF2101, ZBYF4101, ZBYF6101, ZBYF6102, ZBZF32, ZBZF33, ZB4FBZ007 Plastic, Dark gray plastic Round Red flush, O white Standard contacts 1 Harmony XB5 Built-in-flush 10 A EN/IEC 60947-5-1 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h
Condition: New
Usually ships Same Day or Next Day$40.43
Sale Price
$33.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
flush mounted red flush caps pushbutton white marked "O" 1NC screw clamp
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
White
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Flush
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Contact Configuration
1 NC
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) IP Rating
IP 69K
Manufacturer
Schneider Electric
Component
Selector Switch
Features
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product
The mounting diameter is 30.5 mm
It has a \O\ marking in white
Customized marking option is also available through web customization tool in Schneider Electric website
The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics
The contact type is 1NC slow break and the connection terminal is screw clamp
The operator mechanism is spring return, and the push mechanism is flush push
The shape of the head is round and red
The bezel and the fixing collar is plastic
The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm
The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications
With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved
It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals
Accessories to be ordered separately are available to facilitate the installation
The packaging includes 1 unit of this pushbutton
It can be easily installed to a panel cut out with the help of a cross head screwdriver
Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
