Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

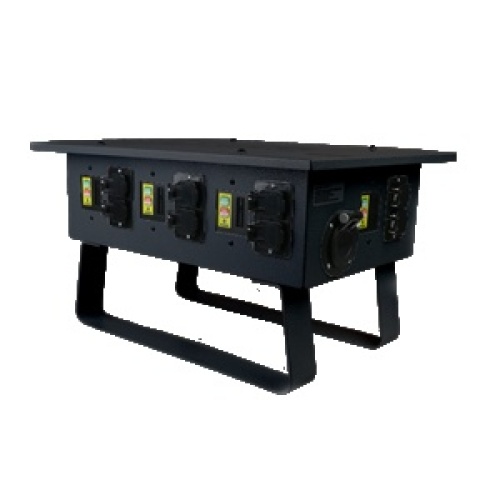

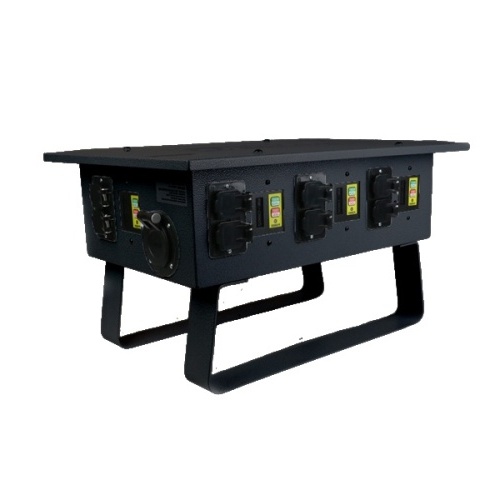

Ericson 1066FS-BK Power Distribution Unit
Normally In Stock
Code: 874494
Ericson 1066FS-BK 1066FS OSCAR PDU, HAMMERD BLACK, 50A 240V NEMA3R W/ (6) NEMA5-20 DUPLEX, (6) 20A BREAKERS, (1) L6-30 W/ NON-GFCI BREAKER & 50A CS6369 FEED-THRU. PAINTED HAMMERED BLACK HOUSING AND LEGS
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$1124.99
Sale Price
$937.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson 1066FS-BK 1066FS OSCAR PDU, HAMMERD BLACK, 50A 240V NEMA3R W/ (6) NEMA5-20 DUPLEX, (6) 20A BREAKERS, (1) L6-30 W/ NON-GFCI BREAKER & 50A CS6369 FEED-THRU. PAINTED HAMMERED BLACK HOUSING AND LEGS
Specifications
Transformer Voltage Phases
Single Phase
Component
Power Distribution Unit
Enclosure
NEMA 3R
Manufacturer
Ericson
Features
cETLus listed for use in U.S. and Canada
UL943-5th Edition Self-Testing GFCI Module with Nema 4 Test/Resent Buttons For Damp/Wet Areas
UL1640 – Open Neutral Protection
30A, 240V GFCI Welding Receptacle as Standard Option
50A Feed-through
L14-30 (30A 120V/240V) locking receptacle for additional 30A overload protected, downstream receptacle capacity (on specified models only)
Custom Receptacle Options Available
Powder Coated Paint Ensure Rugged Jobsite Performance
Heavy Duty Legs in “sled” Fashion for Jobsite Repositioning
Outdoor Units Provide Nema 3R Weather Resistance
Field Serviceable by Qualified Personnel
Renewable Parts List Included and Affixed Under Top Cover
