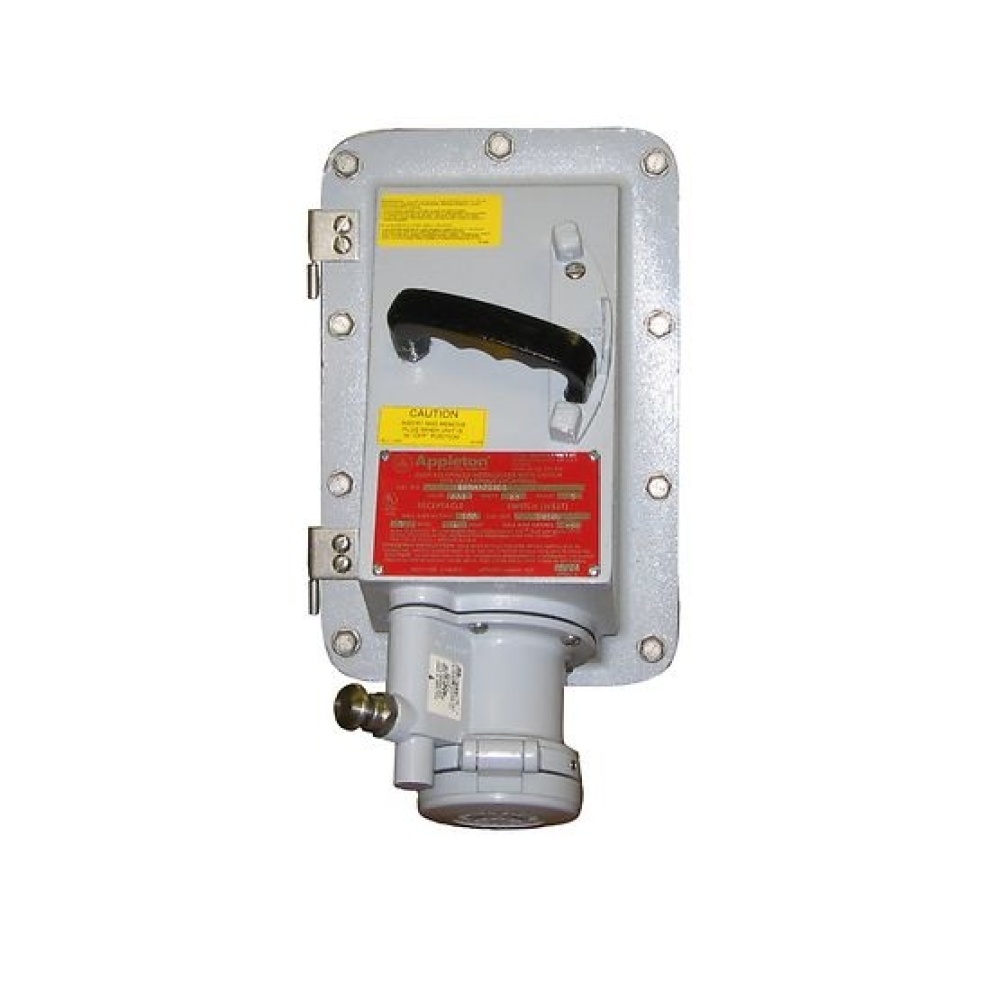

EBRH: interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum. Two or three pole, non-fused motor circuit switch. EBRH permits safe operation in Class I, Group B as well as Class I, Group

EBR: interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection

To operate, insert plug (which automatically locks into receptacle) and turn Breaker Handle to ON position. To remove plug, turn Handle to OFF position, lift Plug Release Knob and pull plug out.

Style 2 (shell and extra pole) grounding

Spring door keeps dust out of receptacle when plug is not in use. Screw cap also supplied at no charge for NEMA 4 applications.

Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact

Contacts have beryllium copper wire springs

Plug mechanical cable clamps prevent strain on cables – they meet or exceed UL strain relief pull-out requirements

Neoprene bushing compressed by cable collar prevents entrance of water

Insulators provide superior dielectric and mechanical strength and lowest arc tracking

1-1/2 NPT tapped conduit openings

one top two bottom
