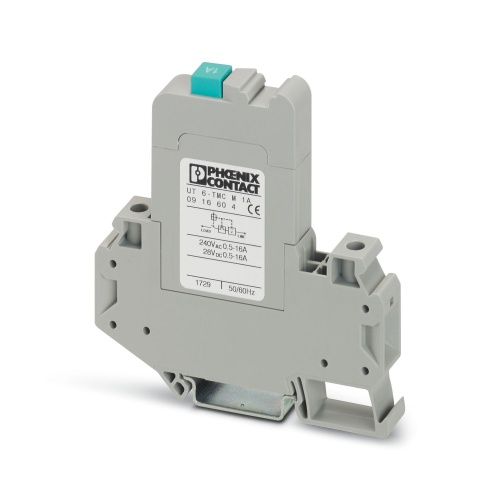

Phoenix Contact 0916604 Thermal-magnetic device circuit breaker UT 6-TMC M 1A
Normally In Stock
Code: 869
Phoenix Contact 0916604 Breaker UT 6-TMC M 1 Pole 1A
Condition: New
Usually ships within 7-14 days. Call for ship time$22.52
Sale Price
$18.77
MUST BUY IN PACKS OF 6
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0916604 Thermal-magnetic circuit breaker, 1-pos., for DIN rail mounting
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
1 Amp
Breaker Switching Type
Thermomagnetic
Breaker Mechanism Type
Push Button
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Normal Trip
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
50 VAC - 264 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Simple feed-in due to bridging capability
using CLIPLINE complete accessories
High system availability, thanks to easy resetting
Quick and easy identification with large-area marking options
The right device for every application, thanks to a nominal current range of 0.5 to 16 A
Space savings of 30 % compared to miniature circuit breakers owing to the compact width of 12.3 mm
Downloads
Phoenix 0916604 CAD data International.dxfPhoenix 0916604 CAD data International.pdfPhoenix 0916604 CAD data International.stpPhoenix 0916604 CAD Drawing.zipPhoenix 0916604 Data Sheet English.pdfPhoenix 0916604 Flyer English.pdfPhoenix 0916604 Manufacturers declaration English.pdfPhoenix 0916604 Manufacturers declaration International.pdfPhoenix 0916604 Spec Sheet.pdfPhoenix 0916604 Tender Text English.zipPhoenix 0916604 User Manual.pdfPhoenix 0916604 Various English.pdf
