Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

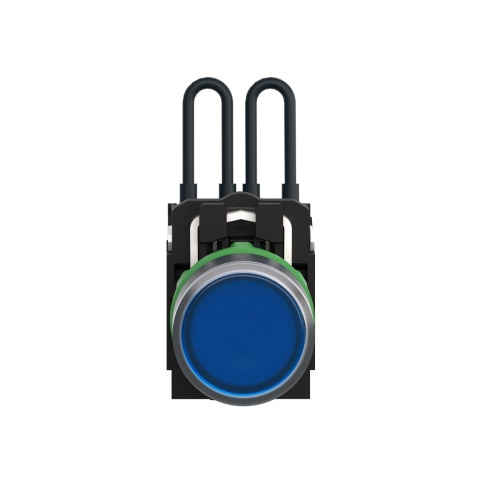

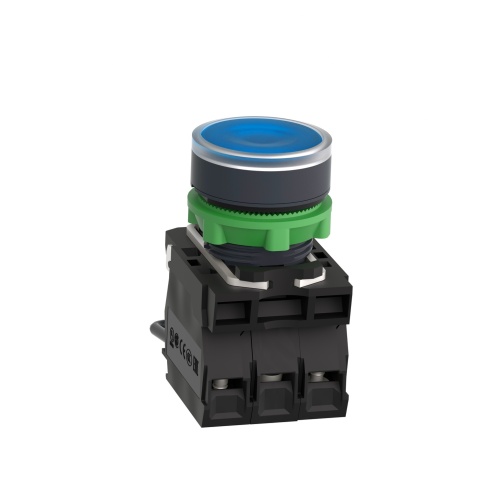

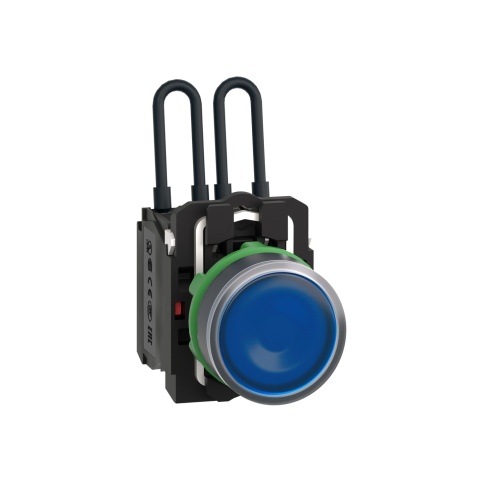

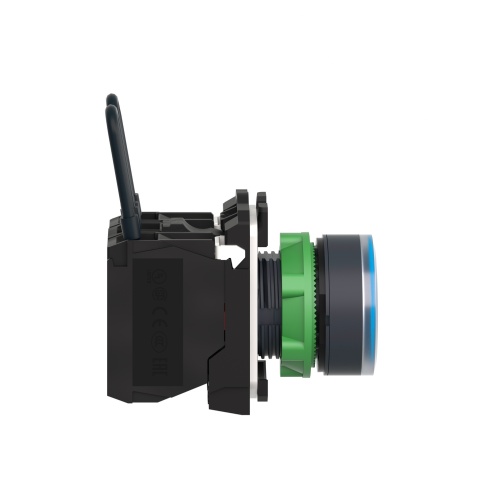

Schneider Electric XB5AW26B5 push-to-test pilot light 24v blue
Normally In Stock
Code: 86746
Schneider XB5AW26B5 24 V AC/DC 50/60 Hz Push-to-test pilot light Blue Integral LED Plastic Round Blue Steady 1 Harmony XB5 600 V 3EN 60947-1 XB5 Plastic 0.87 in (22 mm Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, 1 x 0.22-2 x 2.5 mm²
Condition: New
Usually ships Same Day or Next Day$196.32
Sale Price
$163.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
push-to-test pilot light 24v blue
Specifications
(Switching-Indication) Color
Blue
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) Current Consumption
18 mAmp
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) IP Rating
IP 69K
Manufacturer
Schneider Electric
Component
Pilot Light
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
