Available in 30, 60, and 100 Amp units

Contacts exert constant pressure along the entire contact surface, providing electrical continuity. Solid brass contacts with beryllium copper springs

Floating-type plug contacts self-align to receptacle contacts

Available in two grounding styles: Style 1 (shell only) and Style 2 (shell and extra pole). Grounding detent springs in Style 1 and Style 2. Grounding strap provided in Style 2 permits extra pole grounding. Longer ground contact in Style 2 #8221

makes first, breaks last#8221

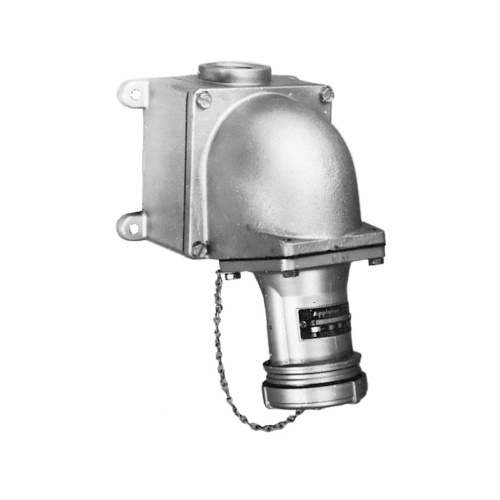

Choice of receptacle types: weatherproof spring door or raintight screw cap

Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking

Plug with clamp ring has neoprene gasket. Ring threads onto screw cap receptacle to provide raintight assembly when properly tightened

Cable clamps prevent strain on cables and allow easy cable replacement

Mounting box gasket protects receptacle from moisture

Choice of several mounting boxes permits different types of installations
