Schneider Electric 9001KR9RH1 Harmony Chromium plated metal Mushroom Non-Illuminated Projecting 1 NO + 1 NC Modular
Normally In Stock
Code: 85842
Schneider XB5AS9445 trigger action and mechanical latching Emergency stop push-button, Emergency switching off push-button 1 NO + 1 NC Key release Dark gray plastic Ronis 455 Center Round Red mushroom Ø 40 mm, unmarked Standard contacts 1 Harmony XB5 Standard 10 A EN/IEC 60947-5-
Condition: New
Normally Stocked$171.35
Sale Price
$142.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

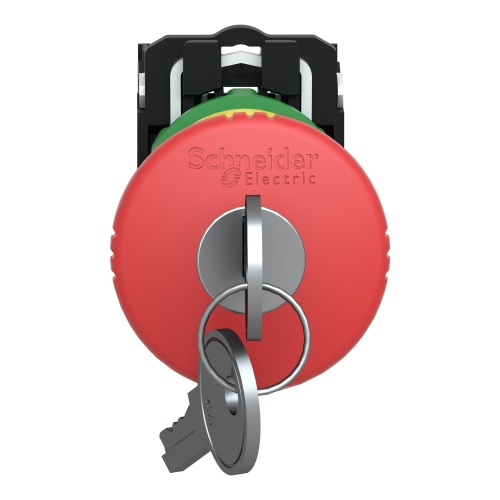

Emergency stop switching off, plastic, red mushroom Ø40, Ø22 trigger latching key release, 1 NO + 1 NC
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Key Withdrawl Position
Center
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Latching
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) Operation
Trigger
(Switching-Indication) Operation
Key
(Switching-Indication) IP Rating
IP 69K
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Wide modular range to suit machines and operator safety.
Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
Illuminated types to improve operator efficiency by reducing production downtime.
